C-Hook Steel Coil Lifter

Product Overview

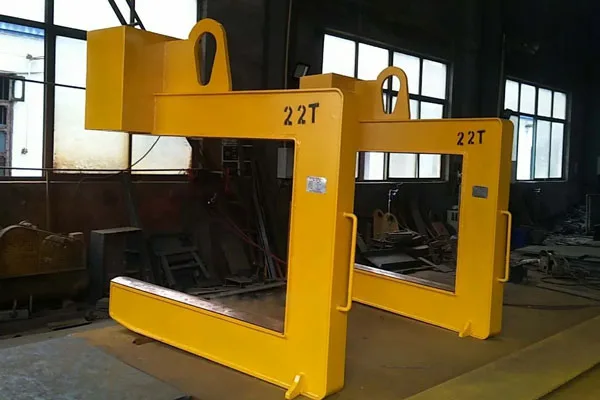

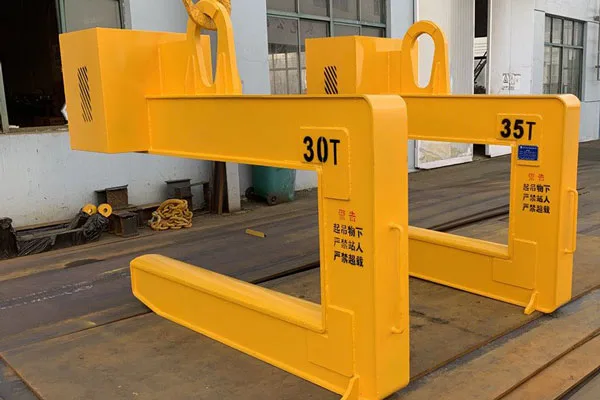

C-hook steel coil lifter is mainly composed of hook main body and counterweight iron.

The main part of the hook is made of Q355B steel plate (high-quality low-alloy steel) and steel pipe.

The section is a box-shaped structure, which has good resistance to bending and torsion.

The C-type hook has the characteristics of light weight and long service life.

Various specifications and models of C-type hook flagcrane can be customized according to demand.

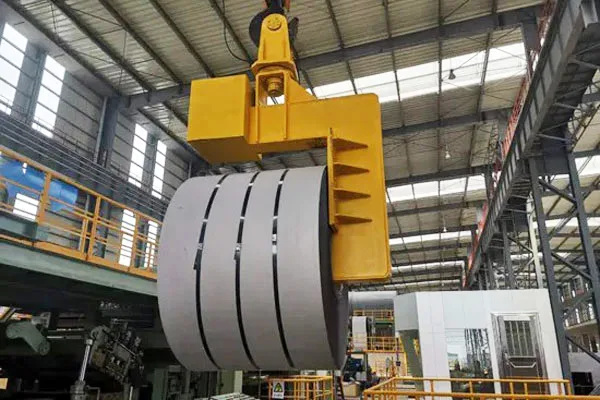

C-hook steel coil lifter is mainly use in workplaces such as steel mills, cold-rolled sheet production and processing enterprises, storage and transportation warehouses, etc.

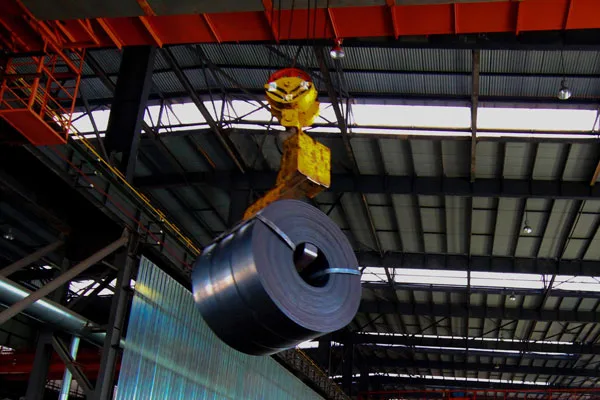

C-hook steel coil lifter is mostly use for hoisting steel coils, aluminum coils, copper coils, wire rods and other coils. as well as for hoisting plates and wire rods such as machine entry slots, I-shaped, box-shaped, and cylindrical types. system to operate quickly, stably and reliably.

Key Advantages

This crane model is engineered for long service life and low maintenance in demanding industrial environments. Buyers choose it because it is built by the factory itself, with steel structure processed by CNC cutting and automated welding for dimensional accuracy and consistent quality.

• ‌ Strong and Lightweight‌ : Built with a box-shaped structure (using tough steel plates and pipes) that resists bending and twisting, making it both durable and easy to handle.
• ‌Balanced Weight‌ : Adjustable counterweights keep the tool stable and perfectly aligned with the coil’s center of gravity.
• ‌‌ ‌Super Strong‌: Made from high-quality low-carbon alloy steel, it handles loads from 1 to 100 tons with a safety factor 3 times higher than required.
• ‌Protects Coils‌: Replaceable pads on the hooks prevent scratches and wear on the steel coils.
• ‌Fits Any Size‌ : Adjustable hooks work for coils of different widths and can lift single or multiple coils, even other materials like steel bars.
• ‌Works Everywhere‌ : Perfect for steel mills, warehouses, ports, and heat treatment processes.
• ‌Tailor-Made Options‌ : Can be customized with extra hooks or electric clamps for special jobs.
• ‌ Easy Care‌ : Just lubricate the moving parts regularly and check for rust to keep it working smoothly.

Main Features

Every C-Hook Steel Coil Lifter leaves the factory complete with the following standard features, verified during final inspection and load testing:

• Designed for heavy duty applications.
• High tensile alloy steel plate reduces physical size and weight.

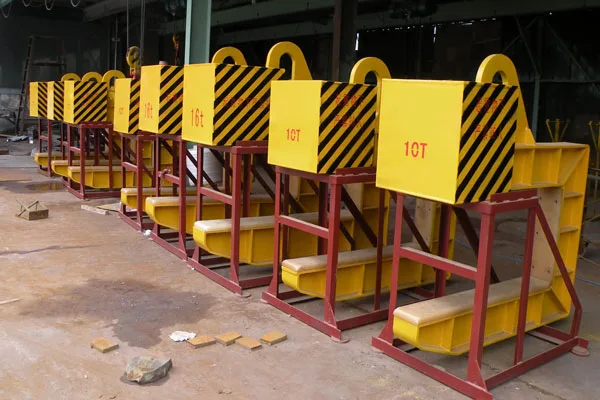

• Counter balanced to hang level when empty.
• Inside radius on hooks avoid coil edge contact.
• Curved coil saddle is standard.
• Guide handles for ease of hook positioning.
• Handles a wide range of coil widths.
• Available with optional padding for additional coil protection.
• Complies with ASME standards.

Applications & Working Conditions

The C-Hook Steel Coil Lifter is used across industrial plants, warehouses, steel mills, power stations, ports and logistics centers. It is available with optional lifting attachments such as lifting beams, electromagnets, grabs, C-hooks and coil tongs for special material handling.

Standard models operate in ambient temperatures from -20°C to +50°C. For special environments, we can supply explosion-proof electrics, high-temperature paint systems, dust-proof protection or corrosion-resistant coatings. Tell us your working condition and our engineers will confirm the correct configuration.

Customization Options

We customize span, lifting height, working class, control mode (pendant, wireless remote or cabin), and add frequency conversion speed control, explosion-proof protection or special coatings to suit your environment. Tell us your requirements and our engineers will prepare a tailored proposal.

Standard Supply Scope

Your order includes the complete crane structure, travelling mechanism, hoisting trolley or hoist, electrical control system, safety devices (limit switches, overload limiter, buffers, emergency stop), operation manual and inspection certificates. Optional extras include wireless remote control, frequency inverter, cabin with heater/air conditioner, lighting and special lifting attachments.

Quality Control & Testing

All structural welding is performed by certified welders and inspected before painting. Each crane undergoes no-load and full-load testing on our test bench, including brake test, limit switch verification and electrical safety check. Third-party inspection (SGS or buyer-nominated) is available before shipment.

Packing & Shipping

Cranes are shipped in knockdown form with steel structure, wheels, trolley, electrics and hardware carefully packed to prevent damage during ocean freight. Export packing follows our standard seaworthy specification, with wooden cases for electrics and control panels. Delivery options include FOB, CIF and DDP to your port.

Installation & After-Sales

We offer installation supervision and commissioning by our engineers, or fully turnkey installation by our experienced team. After commissioning we provide operator and maintenance training, a complete documentation package, and 24/7 spare parts and technical support for the lifetime of the crane.

What to Include in Your Inquiry

To receive an accurate quotation, please send us the following details with your inquiry: required lifting capacity (ton), span or working radius, lifting height, duty / working class, control method (pendant, radio remote or cabin), power supply voltage, site environment (indoor, outdoor, high temperature, dusty, explosion-proof area), and quantity. The more detail you provide, the faster our engineers can confirm the design and price.

Why Buy This Model from FLAGCRANE

You are buying directly from the factory that designs and manufactures the equipment. That means factory-direct pricing, engineering support before and after the order, consistent quality across repeat purchases, and a single accountable partner from drawing approval to commissioning. Our 30+ years in crane manufacturing, 850,000 m² plant and export experience to 50+ countries give buyers the confidence to plan around our delivery schedule.

Typical Configurations

The table below shows common configuration combinations for this model line. Final specifications are always confirmed by our engineers against your site conditions before production.

Parameter	Standard Range
Lifting Capacity	5t~22t (customized)
Ambient Temperature	-20℃ to 40℃
