‌BB Type Wall Travelling Jib Crane

Product Overview

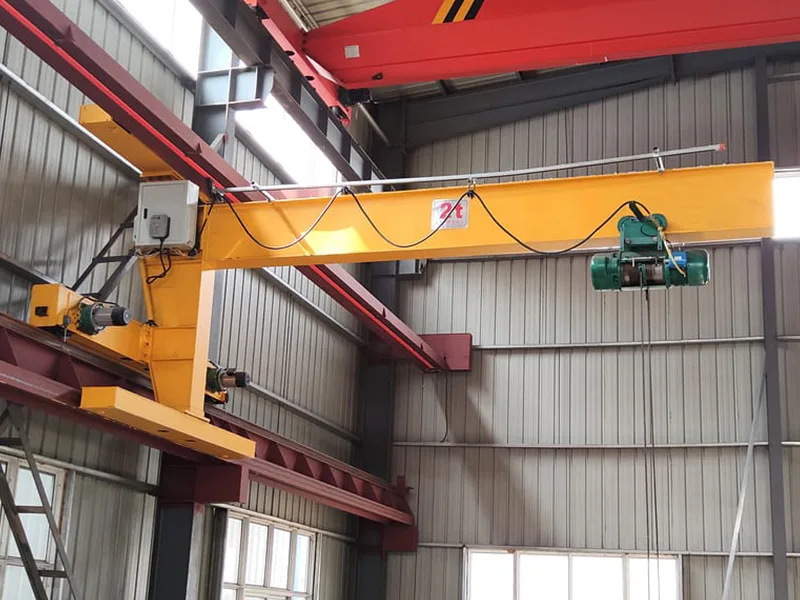

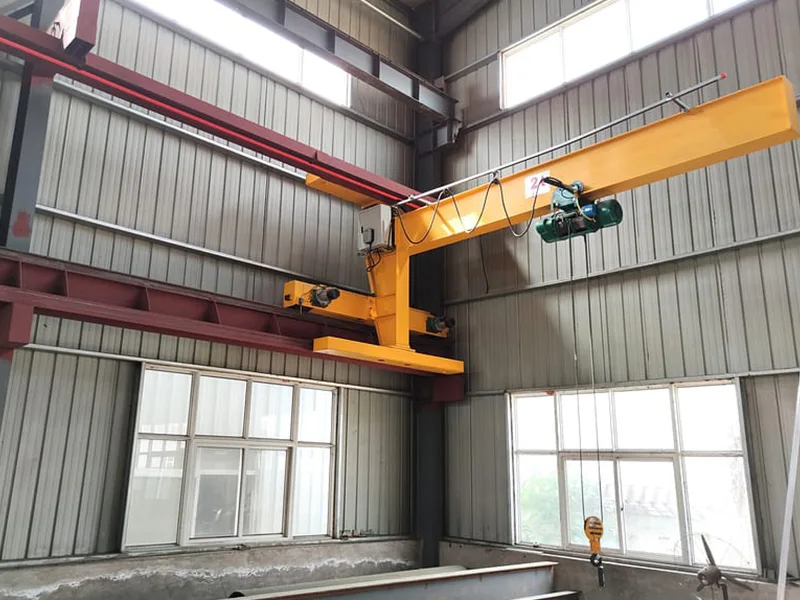

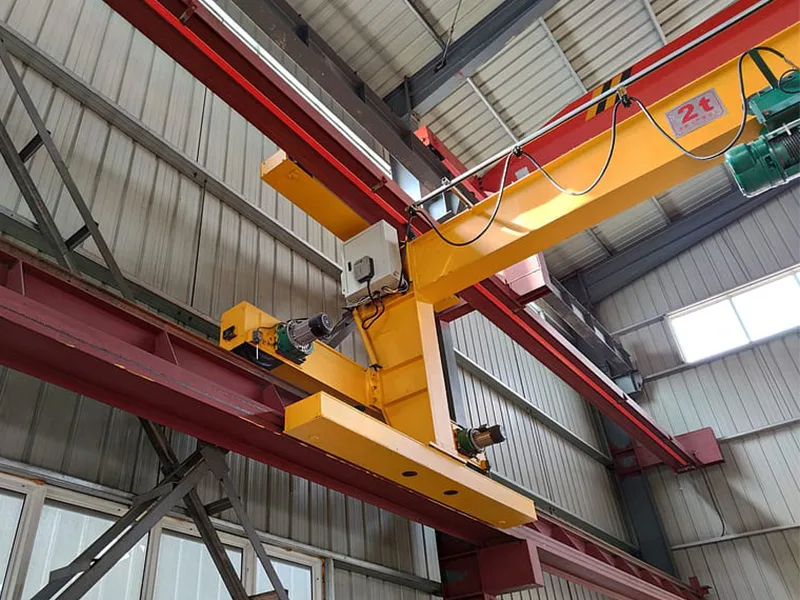

BB type wall travelling jib crane is a cantilever crane that runs on a rail installed on a wall or other supporting structure.

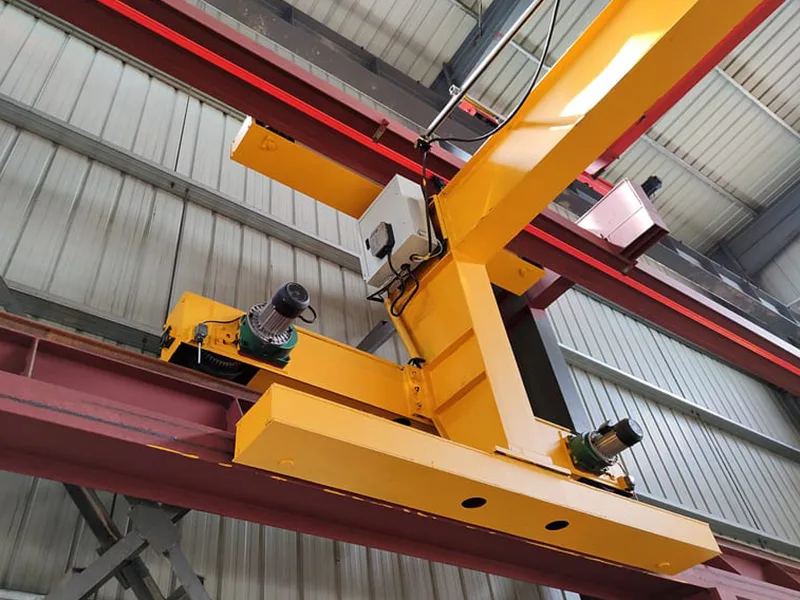

It realizes longitudinal movement through the running rail installed on the concrete column of the factory building, and the hoisting trolley (winch, hoist trolley or winch trolley) can complete the lateral movement and vertical lifting along the cantilever, thereby greatly expanding the operating range and effectively utilizing the factory space.

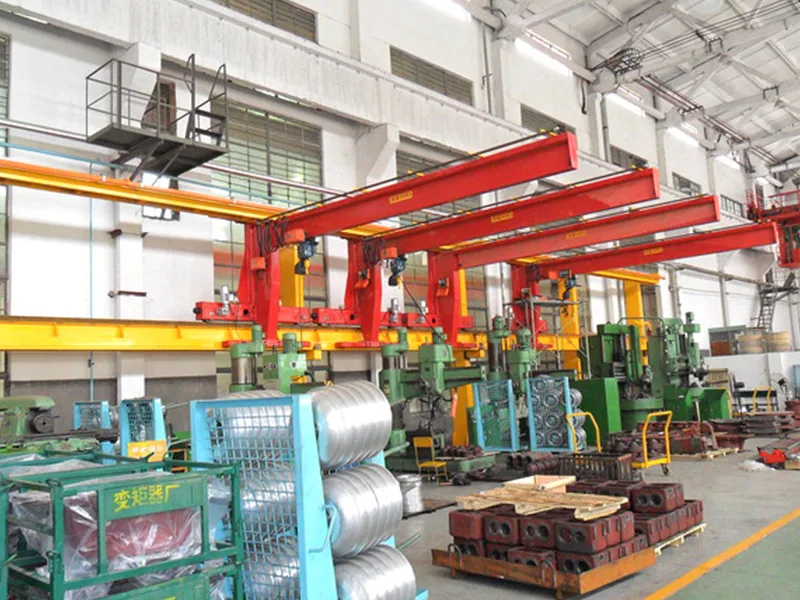

BB type wall travelling jib crane is widely used in warehouses, assembly lines, machinery maintenance workshops, etc.

Depending on your actual use, there are different jib cranes for customers to choose from.

We have an experienced team of crane engineers.

We design the right jib crane system for you, and provide a full range of after-sales services to enable your crane to operate quickly, stably and reliably.

Key Advantages

This crane model is engineered for long service life and low maintenance in demanding industrial environments. Buyers choose it because it is built by the factory itself, with steel structure processed by CNC cutting and automated welding for dimensional accuracy and consistent quality.

• Make full use of the existing conditions of the factory
• Use high-quality steel
• Easy to install and maintain, accessories are highly versatile
• Smooth and reliable operation
• High working efficiency, accurate positioning
• Provide the best highest hook position.
• Greatly improve the productivity of the factory.
• Customized to meet different capacities and working span.

Main Features

Every ‌BB Type Wall Travelling Jib Crane leaves the factory complete with the following standard features, verified during final inspection and load testing:

• ‌High flexibility‌: The rail of the wall travelling jib crane is installed on the pillars of the factory building, so that the crane can move longitudinally on the rail, which significantly improves the flexibility of operation‌.
• ‌High space utilization‌: This design not only improves the utilization of the operating space, but also makes the lifting work more efficient, saving the time and energy of workers switching between different positions‌.
• ‌High operating efficiency‌: The electric hoist can move horizontally on the cantilever and realize the vertical lifting of goods, which greatly increases the operating range and efficiency‌.
• ‌Wide application‌: The wall-mounted cantilever crane is suitable for short-distance operation and intensive lifting operations. It is often used for the transportation of equipment on the production line, especially in equipment maintenance.‌.
• ‌Space saving‌: The wall-mounted cantilever crane is installed on the wall or pillar, which is particularly suitable for places with limited space, such as workshops, warehouses, etc.‌
• ‌Low installation and maintenance costs‌: It has a simple structure, good stability, and low installation and maintenance costs.

Applications & Working Conditions

The ‌BB Type Wall Travelling Jib Crane is used across industrial plants, warehouses, steel mills, power stations, ports and logistics centers. It is available with optional lifting attachments such as lifting beams, electromagnets, grabs, C-hooks and coil tongs for special material handling.

Standard models operate in ambient temperatures from -20°C to +50°C. For special environments, we can supply explosion-proof electrics, high-temperature paint systems, dust-proof protection or corrosion-resistant coatings. Tell us your working condition and our engineers will confirm the correct configuration.

Customization Options

We customize span, lifting height, working class, control mode (pendant, wireless remote or cabin), and add frequency conversion speed control, explosion-proof protection or special coatings to suit your environment. Tell us your requirements and our engineers will prepare a tailored proposal.

Standard Supply Scope

Your order includes the complete crane structure, travelling mechanism, hoisting trolley or hoist, electrical control system, safety devices (limit switches, overload limiter, buffers, emergency stop), operation manual and inspection certificates. Optional extras include wireless remote control, frequency inverter, cabin with heater/air conditioner, lighting and special lifting attachments.

Quality Control & Testing

All structural welding is performed by certified welders and inspected before painting. Each crane undergoes no-load and full-load testing on our test bench, including brake test, limit switch verification and electrical safety check. Third-party inspection (SGS or buyer-nominated) is available before shipment.

Packing & Shipping

Cranes are shipped in knockdown form with steel structure, wheels, trolley, electrics and hardware carefully packed to prevent damage during ocean freight. Export packing follows our standard seaworthy specification, with wooden cases for electrics and control panels. Delivery options include FOB, CIF and DDP to your port.

Installation & After-Sales

We offer installation supervision and commissioning by our engineers, or fully turnkey installation by our experienced team. After commissioning we provide operator and maintenance training, a complete documentation package, and 24/7 spare parts and technical support for the lifetime of the crane.

What to Include in Your Inquiry

To receive an accurate quotation, please send us the following details with your inquiry: required lifting capacity (ton), span or working radius, lifting height, duty / working class, control method (pendant, radio remote or cabin), power supply voltage, site environment (indoor, outdoor, high temperature, dusty, explosion-proof area), and quantity. The more detail you provide, the faster our engineers can confirm the design and price.

Why Buy This Model from FLAGCRANE

You are buying directly from the factory that designs and manufactures the equipment. That means factory-direct pricing, engineering support before and after the order, consistent quality across repeat purchases, and a single accountable partner from drawing approval to commissioning. Our 30+ years in crane manufacturing, 850,000 m² plant and export experience to 50+ countries give buyers the confidence to plan around our delivery schedule.

Typical Configurations

The table below shows common configuration combinations for this model line. Final specifications are always confirmed by our engineers against your site conditions before production.

Parameter	Standard Range
Lifting Capacity	0.25t-10t
Lifting Height	3m-12m
Working Class	A3, A4
Ambient Temperature	-20℃-50℃
