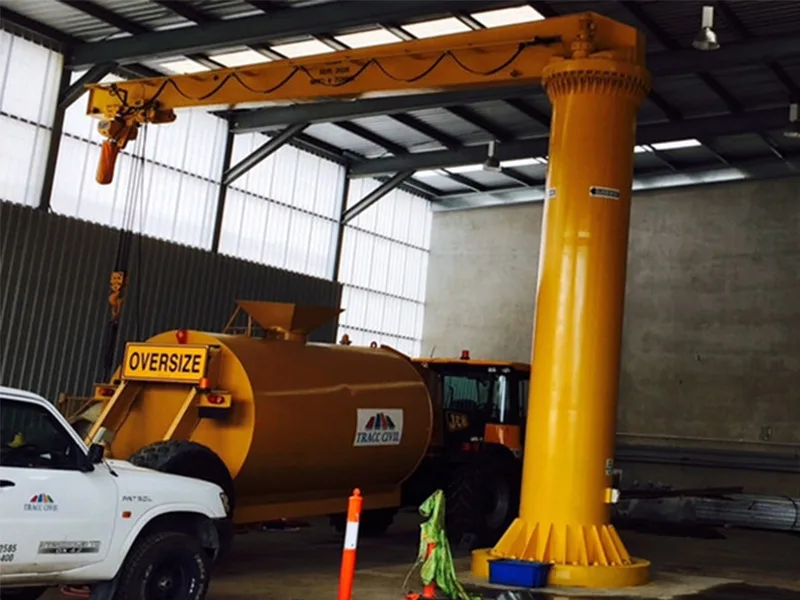

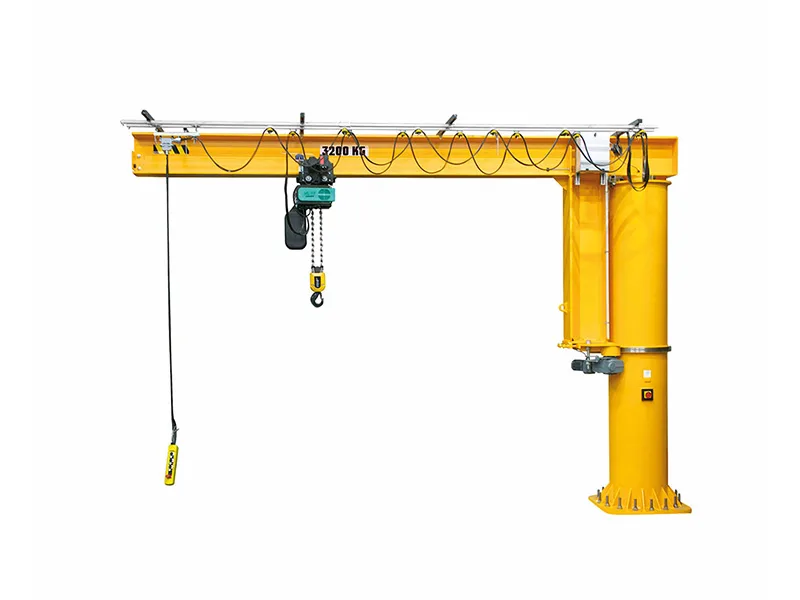

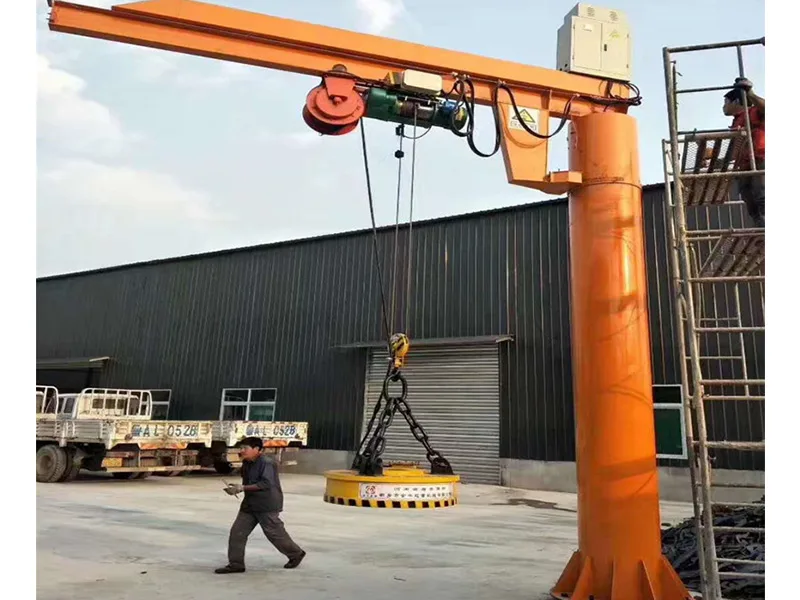

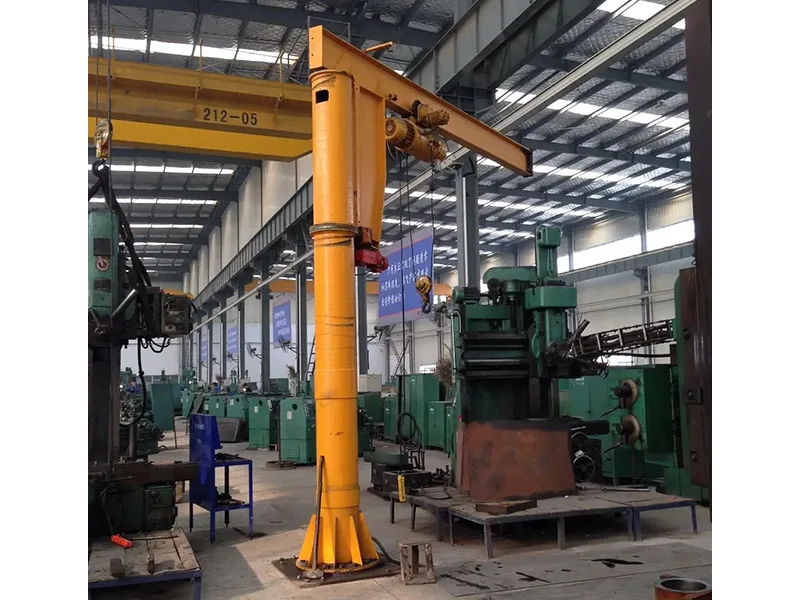

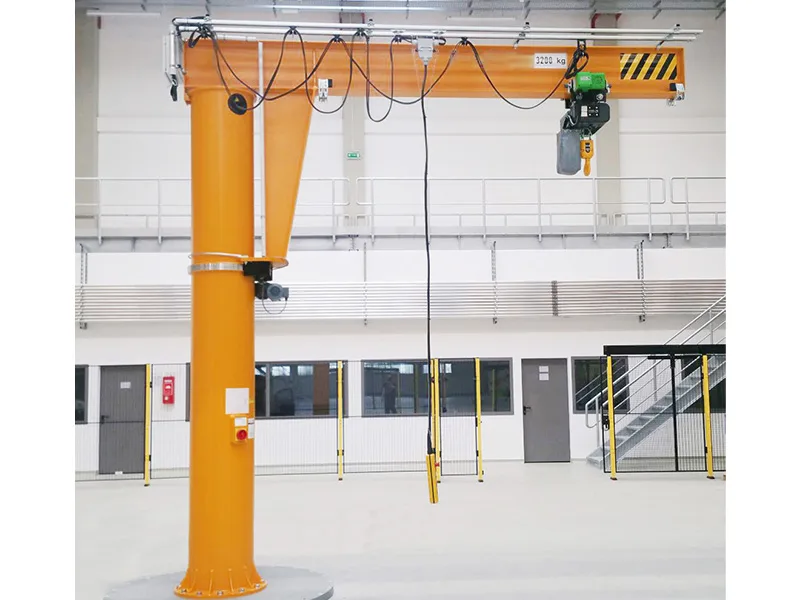

‌BZ Type Fixed Column Pillar Jib Crane

Product Overview

BZ type fixed column pillar jib crane consists of a column, a jib device and a hoist (CD, MD, Chain Hoist or Chain Block).

The installation and disassembly of the fixed column jib crane is very simple and does not require disassembly.

BZ type fixed column pillar jib crane plays a great role in workshops with limited space.

It occupies a small area and can cover the entire working area.

The rotating mechanism can be electric or manual.

BZ type fixed column pillar jib crane is widely used in various places such as loading and unloading docks, ports, shipyards, etc.

It can be used in conjunction with other jib cranes and can also be used as supporting equipment on factory assembly lines.

Depending on your actual use, there are different jib cranes for customers to choose from.

We have an experienced team of crane engineers.

We design the right jib crane system for you, and provide a full range of after-sales services to enable your crane to operate quickly, stably and reliably.

Key Advantages

This crane model is engineered for long service life and low maintenance in demanding industrial environments. Buyers choose it because it is built by the factory itself, with steel structure processed by CNC cutting and automated welding for dimensional accuracy and consistent quality.

• Full use of space
• Low noise
• Easy to install
• Lightweight structure
• Safety and reliability
• Sturdy and durable
• Options and Components

Main Features

Every ‌BZ Type Fixed Column Pillar Jib Crane leaves the factory complete with the following standard features, verified during final inspection and load testing:

• The rotation angle of the cantilever is customized: 0-360 degrees.
• It is divided into heavy and light types.
• The columns are made of pipes with sufficient strength.
• The crane operation can be used for pendant and remote control.
• The slewing movement is both manual and electric.
• The cantilever structure can be supported from below or from above.
• The wide base plate at the bottom of the cantilever evenly distributes the load pressure on the foundation.
• The lifting system can be equipped with CD/MD electric wire rope hoist, manual chain hoist, electric chain hoist and other lifting devices.

Applications & Working Conditions

The ‌BZ Type Fixed Column Pillar Jib Crane is used across industrial plants, warehouses, steel mills, power stations, ports and logistics centers. It is available with optional lifting attachments such as lifting beams, electromagnets, grabs, C-hooks and coil tongs for special material handling.

Standard models operate in ambient temperatures from -20°C to +50°C. For special environments, we can supply explosion-proof electrics, high-temperature paint systems, dust-proof protection or corrosion-resistant coatings. Tell us your working condition and our engineers will confirm the correct configuration.

Customization Options

We customize span, lifting height, working class, control mode (pendant, wireless remote or cabin), and add frequency conversion speed control, explosion-proof protection or special coatings to suit your environment. Tell us your requirements and our engineers will prepare a tailored proposal.

Standard Supply Scope

Your order includes the complete crane structure, travelling mechanism, hoisting trolley or hoist, electrical control system, safety devices (limit switches, overload limiter, buffers, emergency stop), operation manual and inspection certificates. Optional extras include wireless remote control, frequency inverter, cabin with heater/air conditioner, lighting and special lifting attachments.

Quality Control & Testing

All structural welding is performed by certified welders and inspected before painting. Each crane undergoes no-load and full-load testing on our test bench, including brake test, limit switch verification and electrical safety check. Third-party inspection (SGS or buyer-nominated) is available before shipment.

Packing & Shipping

Cranes are shipped in knockdown form with steel structure, wheels, trolley, electrics and hardware carefully packed to prevent damage during ocean freight. Export packing follows our standard seaworthy specification, with wooden cases for electrics and control panels. Delivery options include FOB, CIF and DDP to your port.

Installation & After-Sales

We offer installation supervision and commissioning by our engineers, or fully turnkey installation by our experienced team. After commissioning we provide operator and maintenance training, a complete documentation package, and 24/7 spare parts and technical support for the lifetime of the crane.

What to Include in Your Inquiry

To receive an accurate quotation, please send us the following details with your inquiry: required lifting capacity (ton), span or working radius, lifting height, duty / working class, control method (pendant, radio remote or cabin), power supply voltage, site environment (indoor, outdoor, high temperature, dusty, explosion-proof area), and quantity. The more detail you provide, the faster our engineers can confirm the design and price.

Why Buy This Model from FLAGCRANE

You are buying directly from the factory that designs and manufactures the equipment. That means factory-direct pricing, engineering support before and after the order, consistent quality across repeat purchases, and a single accountable partner from drawing approval to commissioning. Our 30+ years in crane manufacturing, 850,000 m² plant and export experience to 50+ countries give buyers the confidence to plan around our delivery schedule.

Typical Configurations

The table below shows common configuration combinations for this model line. Final specifications are always confirmed by our engineers against your site conditions before production.

Parameter	Standard Range
Lifting Capacity	0.5t-16t
Lifting Height	6m-30m
Span Length	7.5m-28.5m
Working Class	A3, A4
Ambient Temperature	-20℃-50℃
