Crane Wheels

Product Overview

Crane wheels are usually made of durable steel or cast iron.

They are strong and durable enough to carry and transport weight.

These wheels travel on rails with drive provided by an electric or hydraulic system, enabling the crane to move laterally within the work area.

Electric system crane wheel is usually equip with electric motors.

It drives the wheels from power.

This drive method provides high precision and control.

Cranes are capable of moving with high precision.

Hydraulic system crane wheel is driven from the hydraulic motor.

Hydraulic systems generally provide greater torque and power output.

The crane is capable of moving under the condition of large traction force.

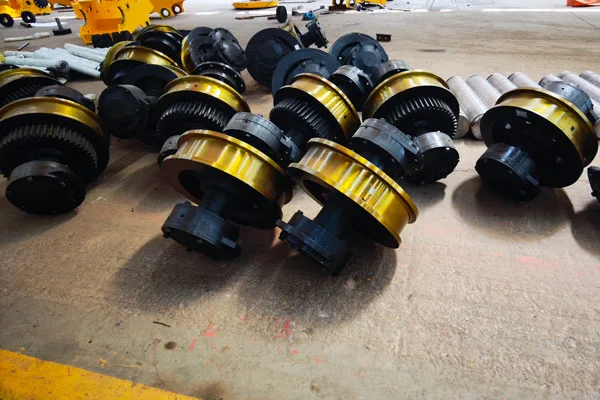

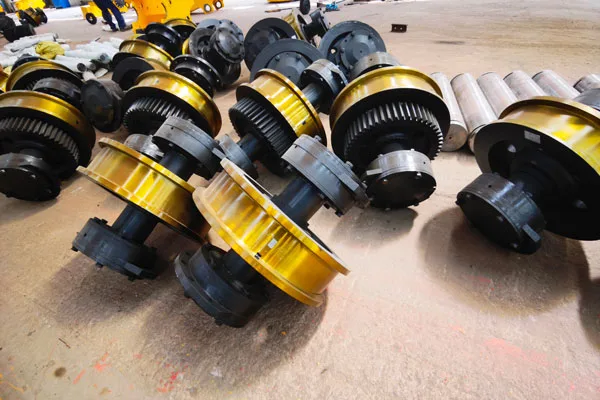

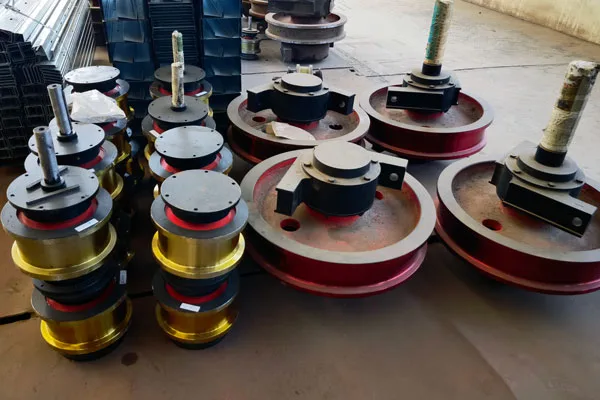

Crane wheels are are various. such as: single rim wheel, double rim wheel, non-rim wheel, and other nonstandard wheels.

Its mainly use in all kinds of lift machines, such as overhead crane, gantry crane, hoists and port crane etc.

Depending on your actual use, there are different crane parts for customers to choose from.

We have an experienced team of crane engineers.

We design the right crane system for you, and provide a full range of after-sales services to enable your crane system to operate quickly, stably and reliably.

Key Advantages

This crane model is engineered for long service life and low maintenance in demanding industrial environments. Buyers choose it because it is built by the factory itself, with steel structure processed by CNC cutting and automated welding for dimensional accuracy and consistent quality.

• Cast Steel Wheels‌: High load capacity and excellent wear resistance, ideal for heavy-duty applications (e.g., port cranes).
• Forged Steel Wheels‌: Dense internal structure for superior strength and impact resistance, perfect for high-frequency, heavy-load operations.
• Cast Iron Wheels‌: Cost-effective for light-duty, low-speed scenarios (e.g., small warehouse cranes).
• Nylon Wheels‌: Lightweight, corrosion-resistant, and self-lubricating, ideal for humid or chemical environments.
• ‌Double-Flange Wheels‌: Dual flanges prevent derailment, commonly used in rail-based cranes.
• Optimized Flange Height‌: Balances stability and minimizes friction with tracks.
• Wide Wheelbase & Large Diameter‌: Enhances stability and load capacity; larger wheels support faster movement.
• Nylon wheels absorb shocks and reduce noise, perfect for noise-sensitive areas (e.g., workshops, hospitals).
• Modular designs allow quick replacement of worn parts (e.g., bearings) to minimize downtime.
• Standardized parts (e.g., universal flanges) cut maintenance costs.
• Extreme Environments‌: Cast/forged steel wheels excel in high-temperature, dusty, or rugged settings (e.g., mining, metallurgy).
• Precision Operations‌: Nylon wheels aid delicate tasks with their shock-absorbing properties.

Main Features

Every Crane Wheels leaves the factory complete with the following standard features, verified during final inspection and load testing:

• Crane wheel application: overhead crane, gantry crane, crane trolley, transfer car, heavy-duty industry, port crane, steel factory, etc.
• Crane wheel heat treatment: quenching and tempering
• Crane wheel coating: black oxide + rust-proof oil
• Crane wheel inspection: A third-party inspection is possible if required.
• Crane wheel material : 42CrMo4, AISI4140, 41Cr4, A504, SSW-Q1R, 65Mn, 1045, 1055, 1060, 1070, and ductile iron 400, 500,600,700 etc.

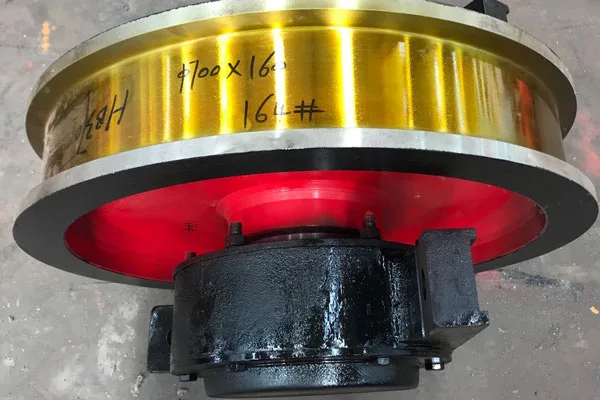

• Crane wheel dimension: φ250, φ350, φ400, φ500, φ600, φ700, φ800, φ 1000, φ 1200 or customized overhead crane wheels and gantry crane wheels are supplied with the specifications.

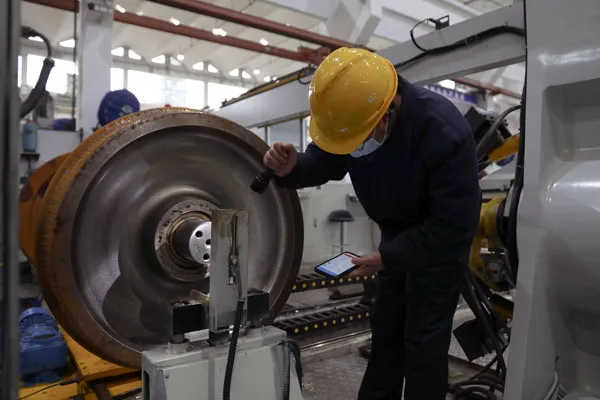

• Crane wheel quality control: All the required crane wheel tests are applied including UT, MT, RT, PT, chemical composition test, mechanical property test, etc.
• Crane wheel quenching depth: ≥20mm
• Crane wheel competitive advantage: Quality control and management of the entire manufacturing process, including ingot smelting, forging, heat treatment, machining, and final inspection prior to delivery.
• Crane wheel standard: ASTM, ASME, DIN, JIS, ISO, BS, API, EN, GOST, etc
• Crane wheel certificate: All the testing certifications are provided if required including raw material certificate(material chemical composition), Heat treatment sheet report, dimension inspection report,and UT/MT test report, etc.
• Crane wheel packing: Seaworthy plywood packaged on steel pallets or customized.
• Crane wheel certification: All our crane wheels have obtained CCC, ISO9001, and CE certification.

Applications & Working Conditions

The Crane Wheels is used across industrial plants, warehouses, steel mills, power stations, ports and logistics centers. It is available with optional lifting attachments such as lifting beams, electromagnets, grabs, C-hooks and coil tongs for special material handling.

Standard models operate in ambient temperatures from -20°C to +50°C. For special environments, we can supply explosion-proof electrics, high-temperature paint systems, dust-proof protection or corrosion-resistant coatings. Tell us your working condition and our engineers will confirm the correct configuration.

Customization Options

We customize span, lifting height, working class, control mode (pendant, wireless remote or cabin), and add frequency conversion speed control, explosion-proof protection or special coatings to suit your environment. Tell us your requirements and our engineers will prepare a tailored proposal.

Standard Supply Scope

Your order includes the complete crane structure, travelling mechanism, hoisting trolley or hoist, electrical control system, safety devices (limit switches, overload limiter, buffers, emergency stop), operation manual and inspection certificates. Optional extras include wireless remote control, frequency inverter, cabin with heater/air conditioner, lighting and special lifting attachments.

Quality Control & Testing

All structural welding is performed by certified welders and inspected before painting. Each crane undergoes no-load and full-load testing on our test bench, including brake test, limit switch verification and electrical safety check. Third-party inspection (SGS or buyer-nominated) is available before shipment.

Packing & Shipping

Cranes are shipped in knockdown form with steel structure, wheels, trolley, electrics and hardware carefully packed to prevent damage during ocean freight. Export packing follows our standard seaworthy specification, with wooden cases for electrics and control panels. Delivery options include FOB, CIF and DDP to your port.

Installation & After-Sales

We offer installation supervision and commissioning by our engineers, or fully turnkey installation by our experienced team. After commissioning we provide operator and maintenance training, a complete documentation package, and 24/7 spare parts and technical support for the lifetime of the crane.

What to Include in Your Inquiry

To receive an accurate quotation, please send us the following details with your inquiry: required lifting capacity (ton), span or working radius, lifting height, duty / working class, control method (pendant, radio remote or cabin), power supply voltage, site environment (indoor, outdoor, high temperature, dusty, explosion-proof area), and quantity. The more detail you provide, the faster our engineers can confirm the design and price.

Why Buy This Model from FLAGCRANE

You are buying directly from the factory that designs and manufactures the equipment. That means factory-direct pricing, engineering support before and after the order, consistent quality across repeat purchases, and a single accountable partner from drawing approval to commissioning. Our 30+ years in crane manufacturing, 850,000 m² plant and export experience to 50+ countries give buyers the confidence to plan around our delivery schedule.

Typical Configurations

The table below shows common configuration combinations for this model line. Final specifications are always confirmed by our engineers against your site conditions before production.

Parameter	Standard Range
Capacity	1t~160t (customized)
