HB Electric Chain Hoist

Product Overview

HB electric chain hoist adopts high-strength alloy body, beautiful appearance, compact body, small size and light weight.

It adopts two-stage gear transmission, and the high-speed stage is helical gear transmission, which has stable transmission, low noise and high part strength.

The main parts of HB electric chain hoist are made of high-alloy steel material, which has been heat treated many times and has the characteristics of high strength and good wear resistance.

The hook is made of high-strength alloy steel, which has been strengthened and heat treated, and has high strength and will not break even if overloaded.

HB electric chain hoist is easy to operate and maintain.

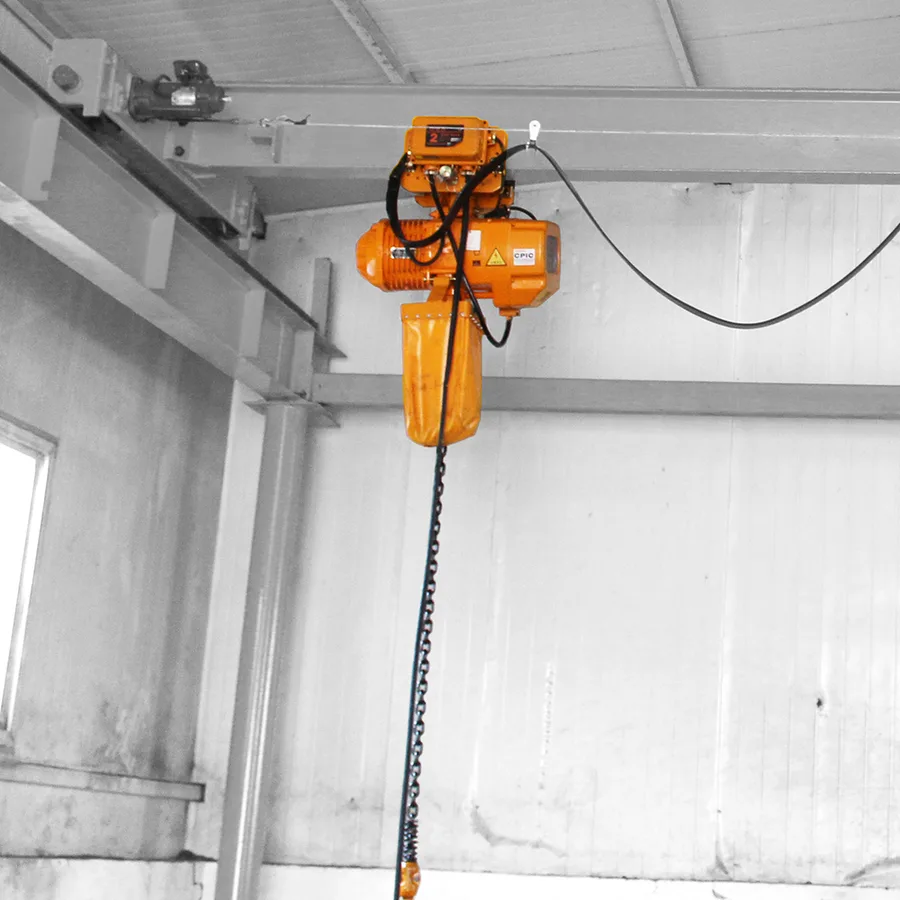

It can be installed on electric or manual single-beam cranes, double-beam cranes, cantilever cranes, gantry cranes and other cranes.

Depending on your actual use, there are different hoist for customers to choose from.

We have an experienced team of crane engineers.

We design the right hoist type for you, and provide a full range of after-sales services to enable your crane to operate quickly, stably and reliably.

Key Advantages

This crane model is engineered for long service life and low maintenance in demanding industrial environments. Buyers choose it because it is built by the factory itself, with steel structure processed by CNC cutting and automated welding for dimensional accuracy and consistent quality.

• The capacity of electric chain hoist ranges from 500kg to 30T, hook type or electric trolley type.
• All electric chain hoists have CE certification.
• Electric chain hoist, the shell is light but hard.
• The G80 chain is of good quality.
• The hook is hot forged with perfect strength and is not easy to break.
• Button, high-quality remote control.
• Electric chain hoist can be equipped with rain cover, stroke limiter and overload limiter.
• Choose single speed or double speed according to your needs.
• Three-phase electric chain hoist: voltage from 220V-690V, 50/60HZ, three-phase, we can also produce single-phase electric chain hoist.
• OEM is available.

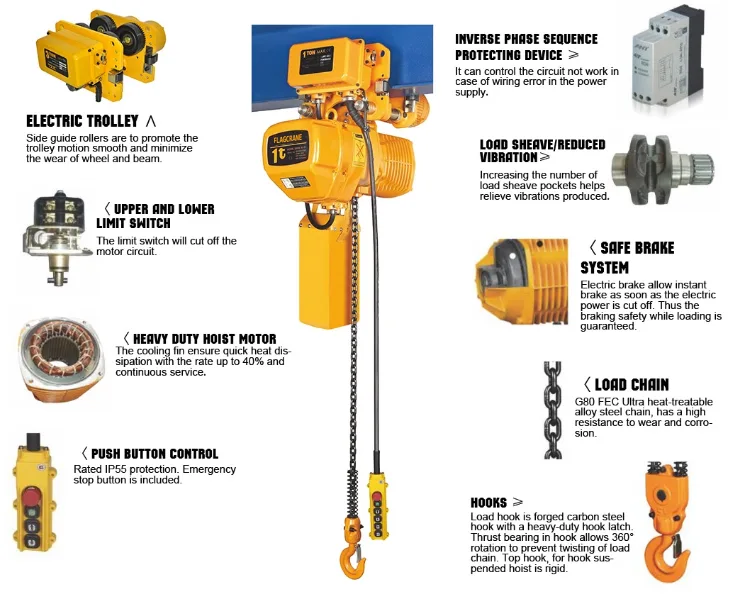

Main Features

Every HB Electric Chain Hoist leaves the factory complete with the following standard features, verified during final inspection and load testing:

• Shell: The shell should be a lightweight aluminum alloy shell, light in weight but hard, suitable for use in harsh working environments with high heat dissipation and a fully sealed design, with an efficiency of up to 40%.
• Limit switch: The limit switch device is installed in a position where the weight can be lifted and put down to make the motor stop automatically to prevent the chain from exceeding the safety range.
• 24V / 36V equipment: It is used to prevent emergencies in the event of a leaking switch.
• Bang magnetic brake: The newly designed magnetic generator, which is characterized by producing magnetism, can brake when the power is cut off, ensuring absolute safety during lifting.
• Hook: After hot forging, it is light and excellent, not easy to break, it can be rotated 360 degrees when hanging, with safety tongue to ensure safe operation
• Chain: The chain should be imported FEC G80 super heat-treated aluminum alloy chain.

Applications & Working Conditions

The HB Electric Chain Hoist is used across industrial plants, warehouses, steel mills, power stations, ports and logistics centers. It is available with optional lifting attachments such as lifting beams, electromagnets, grabs, C-hooks and coil tongs for special material handling.

Standard models operate in ambient temperatures from -20°C to +50°C. For special environments, we can supply explosion-proof electrics, high-temperature paint systems, dust-proof protection or corrosion-resistant coatings. Tell us your working condition and our engineers will confirm the correct configuration.

Customization Options

We customize span, lifting height, working class, control mode (pendant, wireless remote or cabin), and add frequency conversion speed control, explosion-proof protection or special coatings to suit your environment. Tell us your requirements and our engineers will prepare a tailored proposal.

Standard Supply Scope

Your order includes the complete crane structure, travelling mechanism, hoisting trolley or hoist, electrical control system, safety devices (limit switches, overload limiter, buffers, emergency stop), operation manual and inspection certificates. Optional extras include wireless remote control, frequency inverter, cabin with heater/air conditioner, lighting and special lifting attachments.

Quality Control & Testing

All structural welding is performed by certified welders and inspected before painting. Each crane undergoes no-load and full-load testing on our test bench, including brake test, limit switch verification and electrical safety check. Third-party inspection (SGS or buyer-nominated) is available before shipment.

Packing & Shipping

Cranes are shipped in knockdown form with steel structure, wheels, trolley, electrics and hardware carefully packed to prevent damage during ocean freight. Export packing follows our standard seaworthy specification, with wooden cases for electrics and control panels. Delivery options include FOB, CIF and DDP to your port.

Installation & After-Sales

We offer installation supervision and commissioning by our engineers, or fully turnkey installation by our experienced team. After commissioning we provide operator and maintenance training, a complete documentation package, and 24/7 spare parts and technical support for the lifetime of the crane.

What to Include in Your Inquiry

To receive an accurate quotation, please send us the following details with your inquiry: required lifting capacity (ton), span or working radius, lifting height, duty / working class, control method (pendant, radio remote or cabin), power supply voltage, site environment (indoor, outdoor, high temperature, dusty, explosion-proof area), and quantity. The more detail you provide, the faster our engineers can confirm the design and price.

Why Buy This Model from FLAGCRANE

You are buying directly from the factory that designs and manufactures the equipment. That means factory-direct pricing, engineering support before and after the order, consistent quality across repeat purchases, and a single accountable partner from drawing approval to commissioning. Our 30+ years in crane manufacturing, 850,000 m² plant and export experience to 50+ countries give buyers the confidence to plan around our delivery schedule.

Typical Configurations

The table below shows common configuration combinations for this model line. Final specifications are always confirmed by our engineers against your site conditions before production.

Parameter	Standard Range
Lifting Capacity	0.5t to 30t
Lift Speed	1.8m/min~ 8.8 m/min
Lifting Height	3m
Working Class	M3
Ambient Temperature	-20℃ to 50℃
