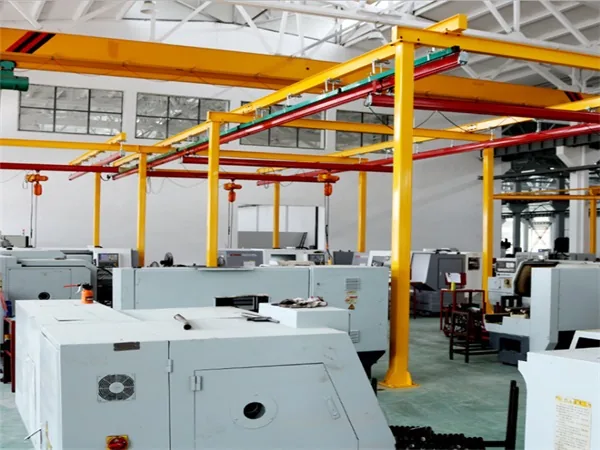

KBK-L Aluminum Rail Workstation Bridge Crane

Product Overview

KBK-L Aluminum rail workstation bridge crane is a lightweight, corrosion-resistant lifting solution made of ‌6063-T6 aluminum alloy, perfect for demanding industrial environments.

Its modular design and extruded rails (2.7 kg/m) reduce structural loads by 50% compared to steel rails, while low-friction rollers reduce energy consumption by 20-30%.

It supports flexible layouts (6-12 meter spans) and integrates electric hoists (accuracy of ±1 mm) for tasks such as assembly or logistics.

With overload protection, emergency brake (response time ≤0.2 seconds) and noise level below 65dB, it is suitable for clean rooms or laboratories.

KBK-L aluminum crane does not require maintenance for 1-2 years and performs well in the automotive, electronics and food processing sectors.

KBK-L KBK-L Aluminum rail workstation bridge crane can be customized with a maximum load capacity of up to 5000 kg. ‌ KBK-L Aluminum Rail Workstation Bridge Crane

Key Advantages

This crane model is engineered for long service life and low maintenance in demanding industrial environments. Buyers choose it because it is built by the factory itself, with steel structure processed by CNC cutting and automated welding for dimensional accuracy and consistent quality.

• Extremely smooth operation
• Easier installation
• Load capacity up to 2,000 kg
• Ergonomic design makes heavy loads easier to handle
• Lower noise levels
• The system is virtually maintenance-free
• Two rail profiles can be integrated with built-in busbars
• KBK-L Aluminum rail workstation bridge crane

Main Features

Every KBK-L Aluminum Rail Workstation Bridge Crane leaves the factory complete with the following standard features, verified during final inspection and load testing:

• Material: High-strength anodized aluminum alloy rail, anodized surface.
• Low resistance: Low resistance during startup.
• Carrying capacity: Maximum rail load 2000Kg.
• Light weight: The rail has a light weight, and the smallest product rail weighs 2.7Kg/m.
• Tailored Your KBK Crane
• It is our pleasure to work with you to find the right solution for your problem, no matter how complex or unique. Our professional technical team will build you a custom crane that has everything you need to effectively lift materials within your facility.
• If you require custom options, let us know and we will work with you to build a factory overhead crane that meets your needs.
• Lifting capacity: ____ ton
• Lifting height: ____ m
• Span: ____ m
• Power supply: ____V _____Hz 3 Phase
• Crane travelling length: ____ m
• New factory? or existing factory?_______________________________
• What purpose will use the crane?______________________________
• Detailed working conditions of the crane:________________________
• Other requirements:__________________________________________

Applications & Working Conditions

The KBK-L Aluminum Rail Workstation Bridge Crane is used across industrial plants, warehouses, steel mills, power stations, ports and logistics centers. It is available with optional lifting attachments such as lifting beams, electromagnets, grabs, C-hooks and coil tongs for special material handling.

Standard models operate in ambient temperatures from -20°C to +50°C. For special environments, we can supply explosion-proof electrics, high-temperature paint systems, dust-proof protection or corrosion-resistant coatings. Tell us your working condition and our engineers will confirm the correct configuration.

Customization Options

We customize span, lifting height, working class, control mode (pendant, wireless remote or cabin), and add frequency conversion speed control, explosion-proof protection or special coatings to suit your environment. Tell us your requirements and our engineers will prepare a tailored proposal.

Standard Supply Scope

Your order includes the complete crane structure, travelling mechanism, hoisting trolley or hoist, electrical control system, safety devices (limit switches, overload limiter, buffers, emergency stop), operation manual and inspection certificates. Optional extras include wireless remote control, frequency inverter, cabin with heater/air conditioner, lighting and special lifting attachments.

Quality Control & Testing

All structural welding is performed by certified welders and inspected before painting. Each crane undergoes no-load and full-load testing on our test bench, including brake test, limit switch verification and electrical safety check. Third-party inspection (SGS or buyer-nominated) is available before shipment.

Packing & Shipping

Cranes are shipped in knockdown form with steel structure, wheels, trolley, electrics and hardware carefully packed to prevent damage during ocean freight. Export packing follows our standard seaworthy specification, with wooden cases for electrics and control panels. Delivery options include FOB, CIF and DDP to your port.

Installation & After-Sales

We offer installation supervision and commissioning by our engineers, or fully turnkey installation by our experienced team. After commissioning we provide operator and maintenance training, a complete documentation package, and 24/7 spare parts and technical support for the lifetime of the crane.

What to Include in Your Inquiry

To receive an accurate quotation, please send us the following details with your inquiry: required lifting capacity (ton), span or working radius, lifting height, duty / working class, control method (pendant, radio remote or cabin), power supply voltage, site environment (indoor, outdoor, high temperature, dusty, explosion-proof area), and quantity. The more detail you provide, the faster our engineers can confirm the design and price.

Why Buy This Model from FLAGCRANE

You are buying directly from the factory that designs and manufactures the equipment. That means factory-direct pricing, engineering support before and after the order, consistent quality across repeat purchases, and a single accountable partner from drawing approval to commissioning. Our 30+ years in crane manufacturing, 850,000 m² plant and export experience to 50+ countries give buyers the confidence to plan around our delivery schedule.

Typical Configurations

The table below shows common configuration combinations for this model line. Final specifications are always confirmed by our engineers against your site conditions before production.

Parameter	Standard Range
Rated load	200 kg~2000 kg
Span	3m~10 m
Lifting height	3m~30 m
Carrying capacity	Maximum rail load 2000Kg.
Light weight	The rail has a light weight, and the smallest product rail weighs 2.7Kg/m.
