KBK-R Flexible Modular Workstation Lifting System

Product Overview

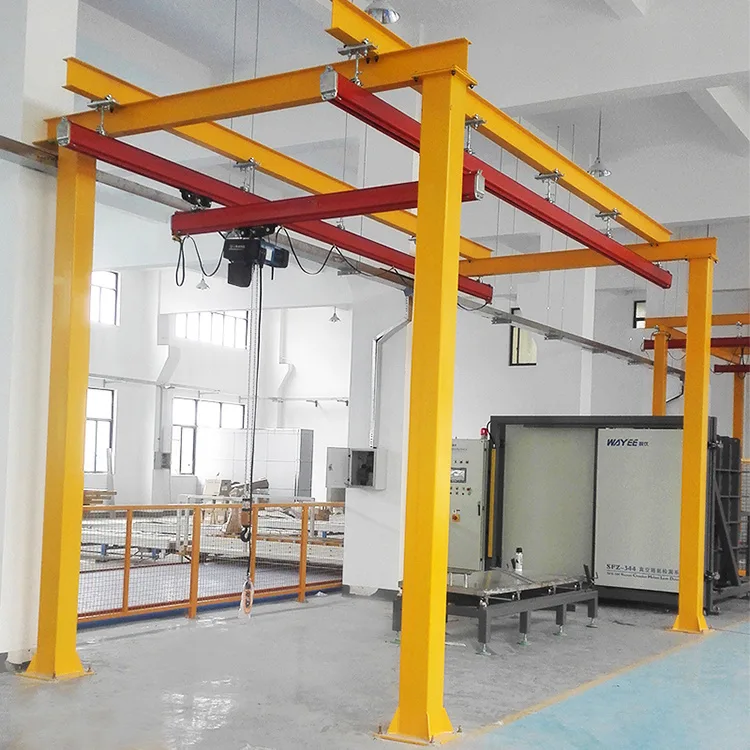

KBK-R flexible modular workstation lifting system is mainly used in material handling, light industrial assembly lines and modern production conveyor lines.

Its lifting capacity usually does not exceed 2 tons.

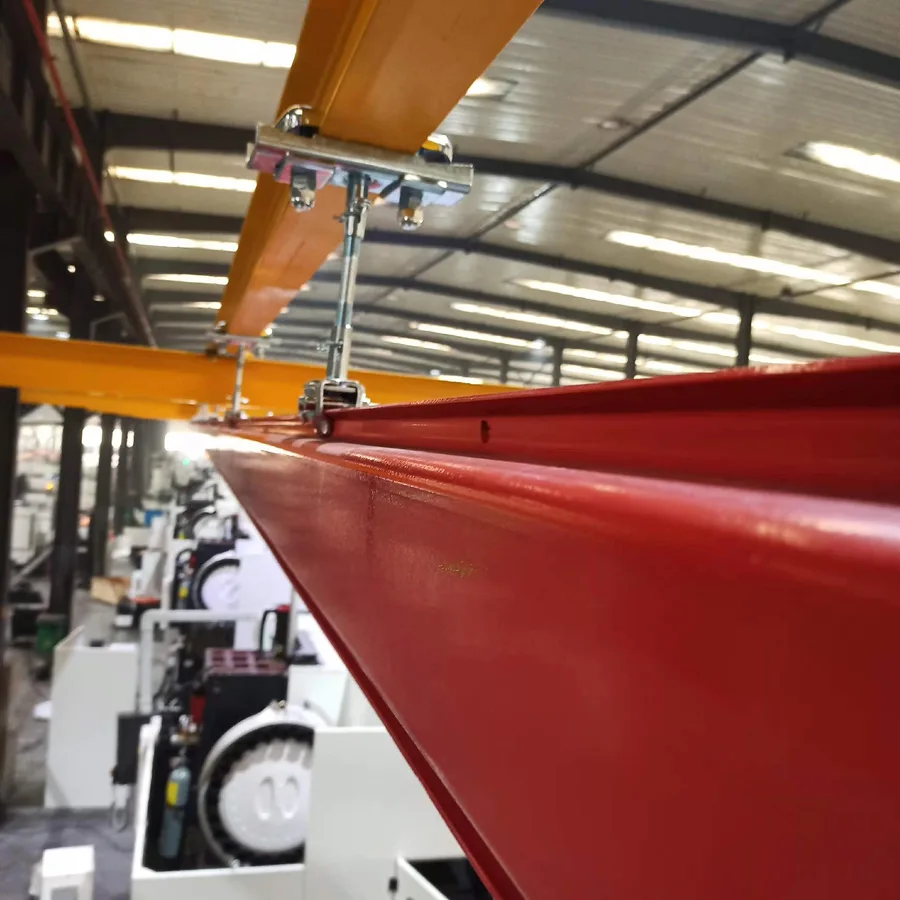

It is mainly composed of standard components such as rails, suspension devices, trolleys and lifting devices, which can be freely assembled according to actual needs.

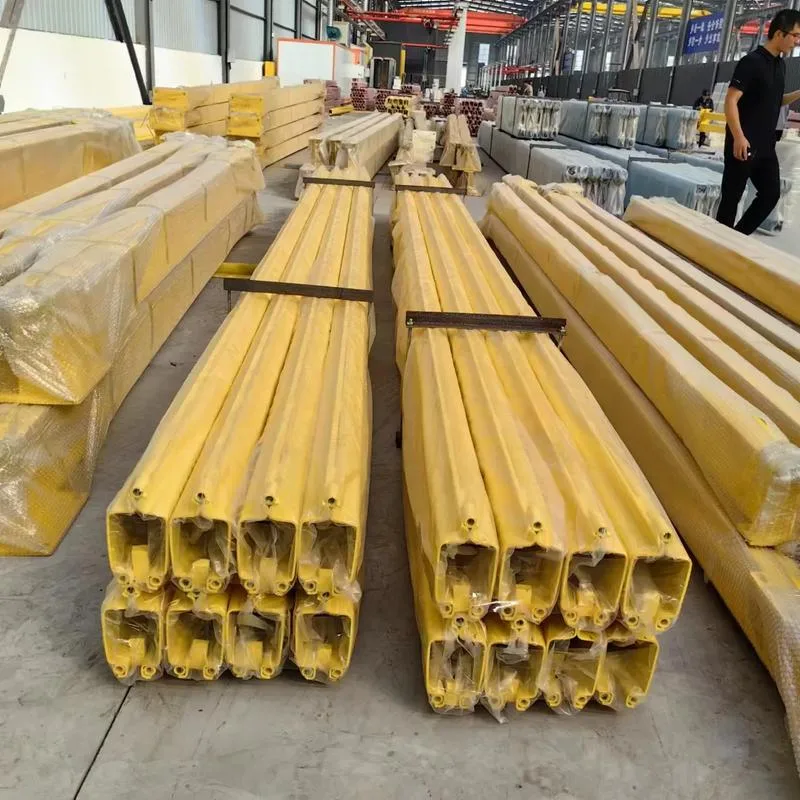

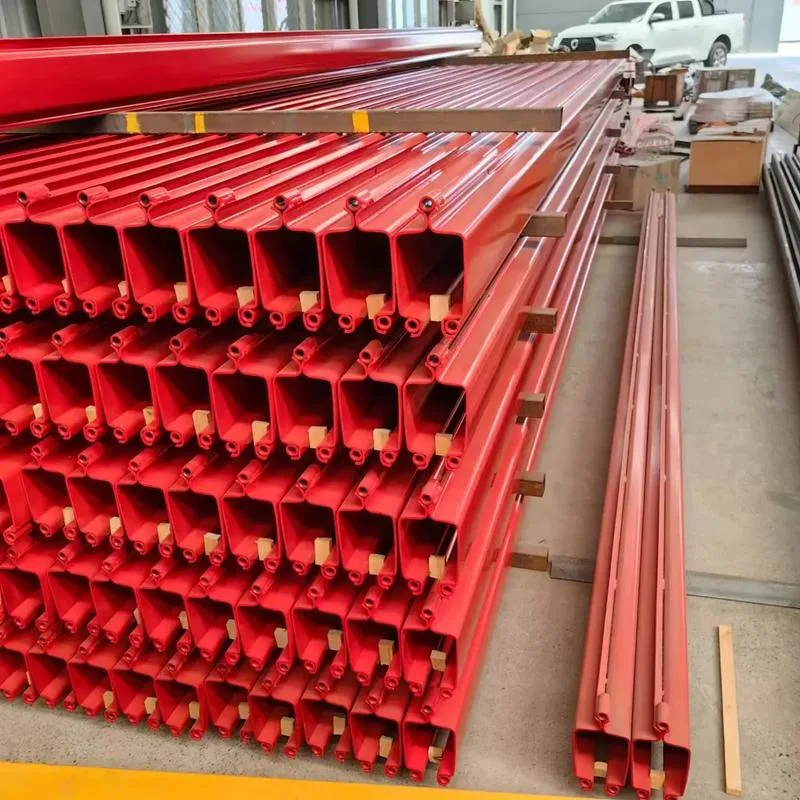

The track design of the KBK-R flexible modular workstation lifting system is unique.

It adopts an Ω-shaped cross-section and is symmetrically connected by two left and right pieces, rather than cold-rolled in one piece.

This design allows the KBK track to flexibly adapt to the needs of different work scenarios, such as lifting systems such as single track, multi-track, curved track or circular track.

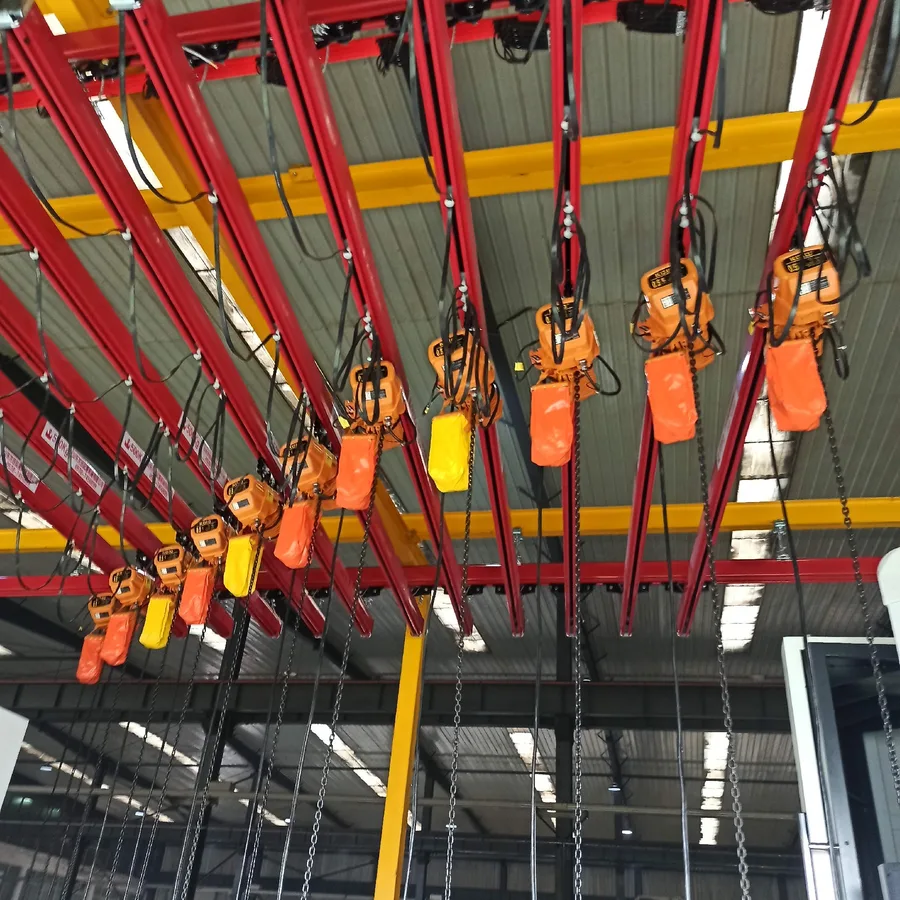

Due to the structural characteristics of the KBK-R flexible modular workstation lifting system, it is usually equipped with a chain hoist as a suspension device, which is suitable for work occasions with small tonnage and low lifting height.

The lifting speed is generally in the range of 0.15~30 meters/minute, and the working level is M3.

The design flexibility of the KBK-R flexible modular workstation lifting system makes it an ideal choice for modern production lines, which can meet various complex work needs and improve production efficiency.

Key Advantages

This crane model is engineered for long service life and low maintenance in demanding industrial environments. Buyers choose it because it is built by the factory itself, with steel structure processed by CNC cutting and automated welding for dimensional accuracy and consistent quality.

• ‌No need for support brackets‌: Reduces structural demands on columns during design, cutting construction costs.
• ‌Works in existing factories‌: Add/remove equipment anytime without rebuilding structures.
• ‌Targeted coverage‌: Only install where needed, avoiding wasted equipment.
• ‌Modular design‌: Easily add, remove, or relocate parts without disrupting other crane zones.
• ‌ Lightweight & easy to control‌: Accurate positioning for delicate tasks.
• ‌ Low energy use‌: Small power needs = eco-friendly and cheap to run.
• ‌ Ultra-quiet operation‌: Minimal noise during use.
• ‌ Durable & easy repairs‌: Maintenance-free tracks + affordable electrical parts = fewer breakdowns and downtime.
• Less wasted time, labor, and energy = higher productivity and long-term savings.

Main Features

Every KBK-R Flexible Modular Workstation Lifting System leaves the factory complete with the following standard features, verified during final inspection and load testing:

• ‌ High-strength steel rails‌: Cold-rolled for durability, no bending or warping.
• ‌ Sealed C/Q-shape design‌: Blocks dust to reduce wheel wear and extend lifespan.
• ‌ 2° angled track‌: Guides carts to stay centered, minimizing friction and energy loss.
• ‌ Lift up to 5000kg+‌: Handles heavy loads effortlessly.
• ‌9m suspension spacing‌: Fewer support columns = more workspace and cleaner factory layout.
• ‌ Uses less steel‌: Simple structure slashes material and installation costs.

Applications & Working Conditions

The KBK-R Flexible Modular Workstation Lifting System is used across industrial plants, warehouses, steel mills, power stations, ports and logistics centers. It is available with optional lifting attachments such as lifting beams, electromagnets, grabs, C-hooks and coil tongs for special material handling.

Standard models operate in ambient temperatures from -20°C to +50°C. For special environments, we can supply explosion-proof electrics, high-temperature paint systems, dust-proof protection or corrosion-resistant coatings. Tell us your working condition and our engineers will confirm the correct configuration.

Customization Options

We customize span, lifting height, working class, control mode (pendant, wireless remote or cabin), and add frequency conversion speed control, explosion-proof protection or special coatings to suit your environment. Tell us your requirements and our engineers will prepare a tailored proposal.

Standard Supply Scope

Your order includes the complete crane structure, travelling mechanism, hoisting trolley or hoist, electrical control system, safety devices (limit switches, overload limiter, buffers, emergency stop), operation manual and inspection certificates. Optional extras include wireless remote control, frequency inverter, cabin with heater/air conditioner, lighting and special lifting attachments.

Quality Control & Testing

All structural welding is performed by certified welders and inspected before painting. Each crane undergoes no-load and full-load testing on our test bench, including brake test, limit switch verification and electrical safety check. Third-party inspection (SGS or buyer-nominated) is available before shipment.

Packing & Shipping

Cranes are shipped in knockdown form with steel structure, wheels, trolley, electrics and hardware carefully packed to prevent damage during ocean freight. Export packing follows our standard seaworthy specification, with wooden cases for electrics and control panels. Delivery options include FOB, CIF and DDP to your port.

Installation & After-Sales

We offer installation supervision and commissioning by our engineers, or fully turnkey installation by our experienced team. After commissioning we provide operator and maintenance training, a complete documentation package, and 24/7 spare parts and technical support for the lifetime of the crane.

What to Include in Your Inquiry

To receive an accurate quotation, please send us the following details with your inquiry: required lifting capacity (ton), span or working radius, lifting height, duty / working class, control method (pendant, radio remote or cabin), power supply voltage, site environment (indoor, outdoor, high temperature, dusty, explosion-proof area), and quantity. The more detail you provide, the faster our engineers can confirm the design and price.

Why Buy This Model from FLAGCRANE

You are buying directly from the factory that designs and manufactures the equipment. That means factory-direct pricing, engineering support before and after the order, consistent quality across repeat purchases, and a single accountable partner from drawing approval to commissioning. Our 30+ years in crane manufacturing, 850,000 m² plant and export experience to 50+ countries give buyers the confidence to plan around our delivery schedule.

Typical Configurations

The table below shows common configuration combinations for this model line. Final specifications are always confirmed by our engineers against your site conditions before production.

Parameter	Standard Range
Lifting Capacity	50kg to 2t
Lifting Height	3m to 10m
Working Class	A3
Ambient Temperature	-20℃ to 40℃
