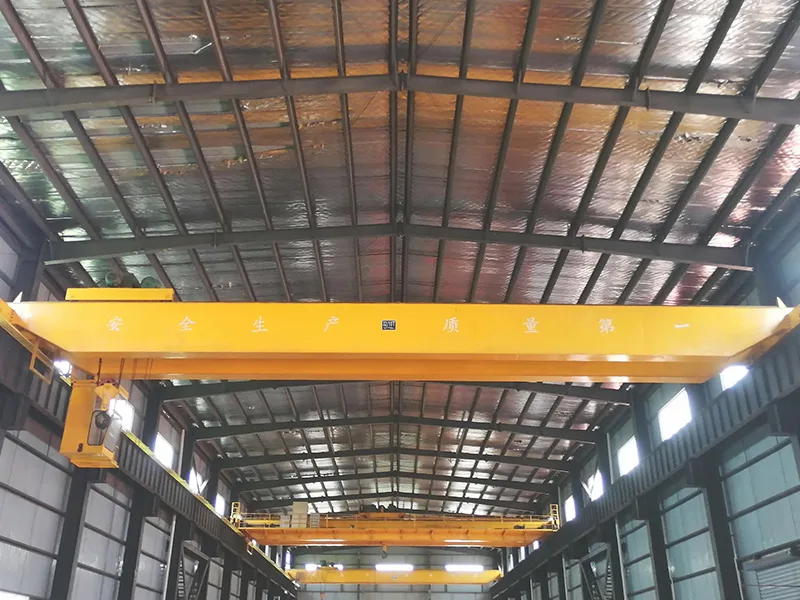

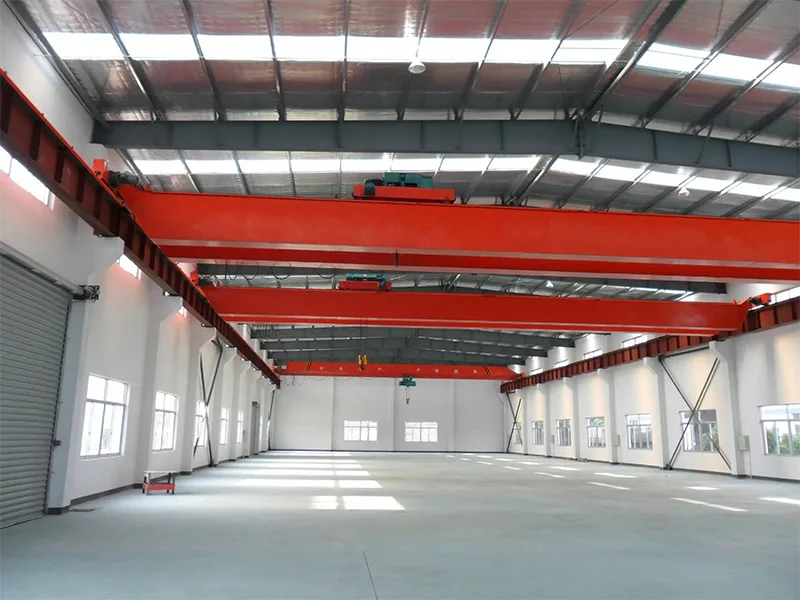

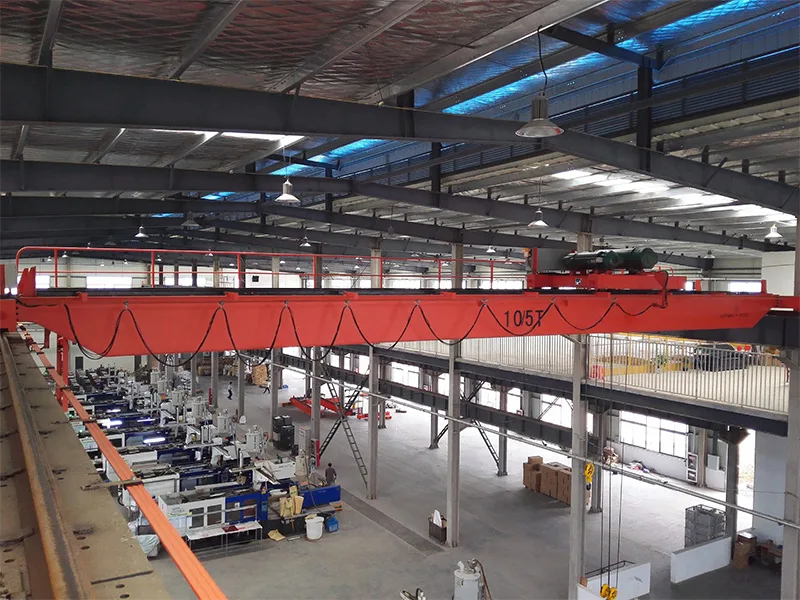

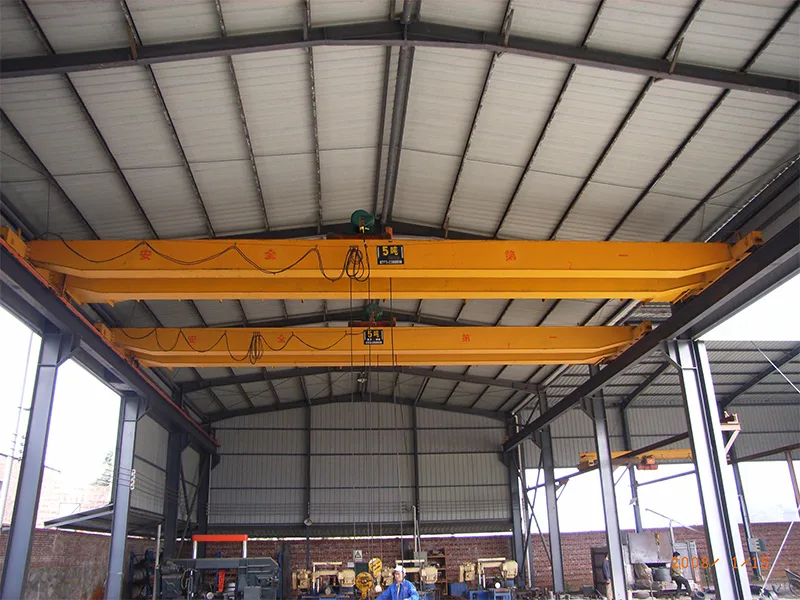

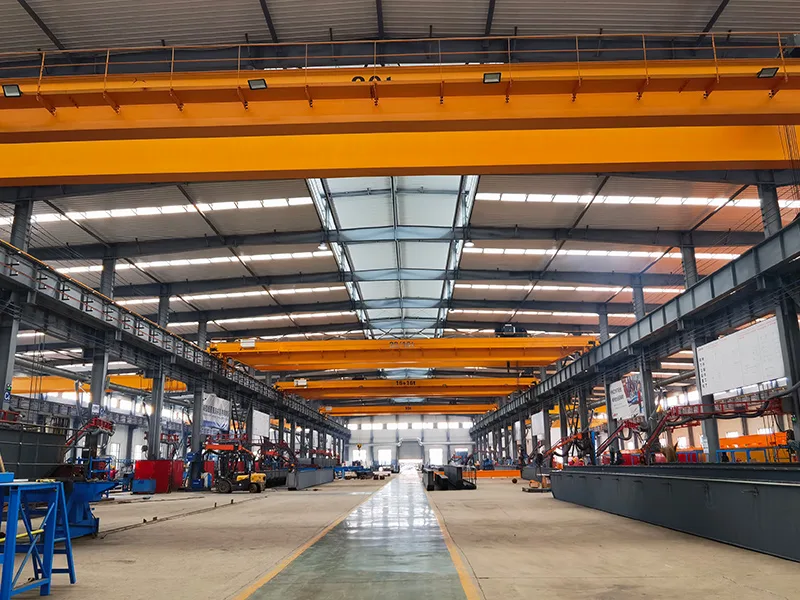

N-LH Type Double Girder Bridge Crane with Hoist Trolley

Product Overview

N/LH type double girder bridge crane with hoist trolley is based on double main beams and electric hoist trolley as the lifting mechanism.

The working level is M4-M5.

Standard capacity from 0.5 ton to 32 tons.

N/LH double girder bridge crane is suitable for a variety of occasions, mainly including industrial production, warehousing management, logistics centers and special environment operations.

N/LH type double girder bridge crane with hoist trolley adopts ND/CD/MD type electric hoist trolley or Chain hoist trolley.

N/LH type double girder bridge crane with hoist trolley is mainly suitable for operation, assembly, maintenance and loading and unloading operations in machinery manufacturing workshops, warehouses, material yards, power stations, etc.

It can complete various transportation, assembly, maintenance and loading and unloading operations.

It can also replace ordinary double-beam bridge cranes and be used in production workshops of the textile industry and the food industry to meet the needs of different industries and customers.

Depending on your actual use, there are different overhead cranes for customers to choose from.

We have an experienced team of crane engineers.

We design the right bridge crane system for you, and provide a full range of after-sales services to enable your crane to operate quickly, stably and reliably.

Key Advantages

This crane model is engineered for long service life and low maintenance in demanding industrial environments. Buyers choose it because it is built by the factory itself, with steel structure processed by CNC cutting and automated welding for dimensional accuracy and consistent quality.

• High lifting height and large lifting capacity: The double-beam bridge crane combines the characteristics of the general double-beam bridge crane and the single-beam crane, and has a high lifting height and a large lifting capacity.
• Strong lifting stability: The double-beam structure provides higher stability for the crane. The hoisting mechanism can be lifted more smoothly with the support of the double beam, reducing the unstable factors caused by uneven load or swing, and is suitable for occasions requiring high-precision operation.
• High space utilization: The hoist of the double-beam bridge crane is small and compact, which can maximize the use of space under the lifting mechanism and reduce unnecessary floor space. It is suitable for factories and workshops with limited space.
• ‌High structural strength and strong bearing capacity: Compared with the single-beam structure, the double-beam structure provides higher bearing capacity and anti-deformation ability, can support larger loads, and ensure that the equipment maintains good stability in long-term use.
• High lifting speed and operating efficiency: Double-beam bridge cranes are usually equipped with multi-speed drive systems, which can achieve more precise and flexible control. The hoist lifting mechanism is easy to operate, which can quickly complete the lifting operation and improve the overall work efficiency.
• Easy operation and high degree of automation: Double-beam bridge cranes are usually equipped with modern operating systems, which can be operated by remote control, buttons or automatic control systems, which greatly improves the convenience and safety of operation and is suitable for large-scale production and automated production lines.
• Easy maintenance and low operating cost: Due to the relatively simple structure of double-beam bridge cranes and the compact design of hoist lifting mechanisms, the maintenance of the equipment is relatively simple. Reasonable design makes it easy to replace vulnerable parts, and the operation efficiency is high, reducing equipment failures.

Main Features

Every N-LH Type Double Girder Bridge Crane with Hoist Trolley leaves the factory complete with the following standard features, verified during final inspection and load testing:

• The lifting mechanism is an electric hoist trolley, and the crane has light weight, small size and small wheel pressure.
• It consists of four parts: box-shaped bridge, trolley running mechanism, hoist trolley and electrical equipment.
• It can adopt single speed or stepless speed regulation, with superior performance and meeting production and maintenance requirements.
• lower building clearance.
• The requirements for the factory building are relatively small.
• The control method can adopt pendant control, wireless remote control, cab control, or a combination of the three control methods.
• The international standard sandblasting and painting process is adopted. When the crane is fully loaded, the deflection of the main beam is less than 1/800 of the span. The surface of the structure must be shot blasted before painting to reach Sa2.5 level, and epoxy painting must be carried out after painting. At least two coats of epoxy primer must be sprayed after surface treatment.

Applications & Working Conditions

The N-LH Type Double Girder Bridge Crane with Hoist Trolley is used across industrial plants, warehouses, steel mills, power stations, ports and logistics centers. It is available with optional lifting attachments such as lifting beams, electromagnets, grabs, C-hooks and coil tongs for special material handling.

Standard models operate in ambient temperatures from -20°C to +50°C. For special environments, we can supply explosion-proof electrics, high-temperature paint systems, dust-proof protection or corrosion-resistant coatings. Tell us your working condition and our engineers will confirm the correct configuration.

Customization Options

We customize span, lifting height, working class, control mode (pendant, wireless remote or cabin), and add frequency conversion speed control, explosion-proof protection or special coatings to suit your environment. Tell us your requirements and our engineers will prepare a tailored proposal.

Standard Supply Scope

Your order includes the complete crane structure, travelling mechanism, hoisting trolley or hoist, electrical control system, safety devices (limit switches, overload limiter, buffers, emergency stop), operation manual and inspection certificates. Optional extras include wireless remote control, frequency inverter, cabin with heater/air conditioner, lighting and special lifting attachments.

Quality Control & Testing

All structural welding is performed by certified welders and inspected before painting. Each crane undergoes no-load and full-load testing on our test bench, including brake test, limit switch verification and electrical safety check. Third-party inspection (SGS or buyer-nominated) is available before shipment.

Packing & Shipping

Cranes are shipped in knockdown form with steel structure, wheels, trolley, electrics and hardware carefully packed to prevent damage during ocean freight. Export packing follows our standard seaworthy specification, with wooden cases for electrics and control panels. Delivery options include FOB, CIF and DDP to your port.

Installation & After-Sales

We offer installation supervision and commissioning by our engineers, or fully turnkey installation by our experienced team. After commissioning we provide operator and maintenance training, a complete documentation package, and 24/7 spare parts and technical support for the lifetime of the crane.

What to Include in Your Inquiry

To receive an accurate quotation, please send us the following details with your inquiry: required lifting capacity (ton), span or working radius, lifting height, duty / working class, control method (pendant, radio remote or cabin), power supply voltage, site environment (indoor, outdoor, high temperature, dusty, explosion-proof area), and quantity. The more detail you provide, the faster our engineers can confirm the design and price.

Why Buy This Model from FLAGCRANE

You are buying directly from the factory that designs and manufactures the equipment. That means factory-direct pricing, engineering support before and after the order, consistent quality across repeat purchases, and a single accountable partner from drawing approval to commissioning. Our 30+ years in crane manufacturing, 850,000 m² plant and export experience to 50+ countries give buyers the confidence to plan around our delivery schedule.

Typical Configurations

The table below shows common configuration combinations for this model line. Final specifications are always confirmed by our engineers against your site conditions before production.

Parameter	Standard Range
Lifting Capacity	2t to 32t
Span	7.5m to 31.5m
Lifting Height	&nbsp6m to 18m
Working Class	A4, A5
Ambient Temperature	-20℃ to 50℃
