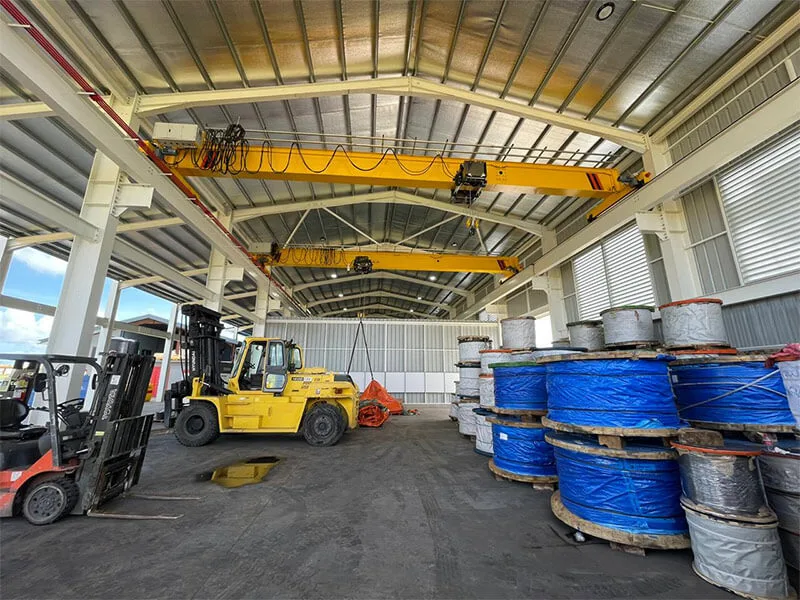

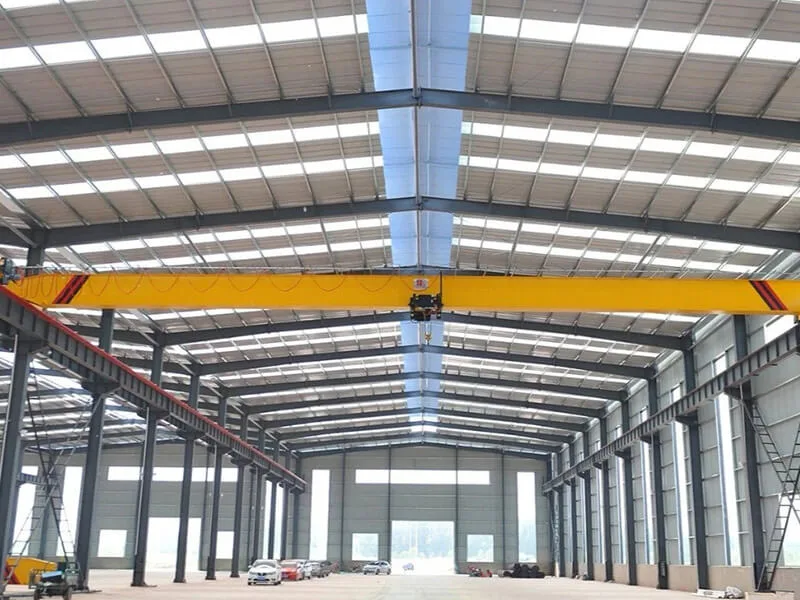

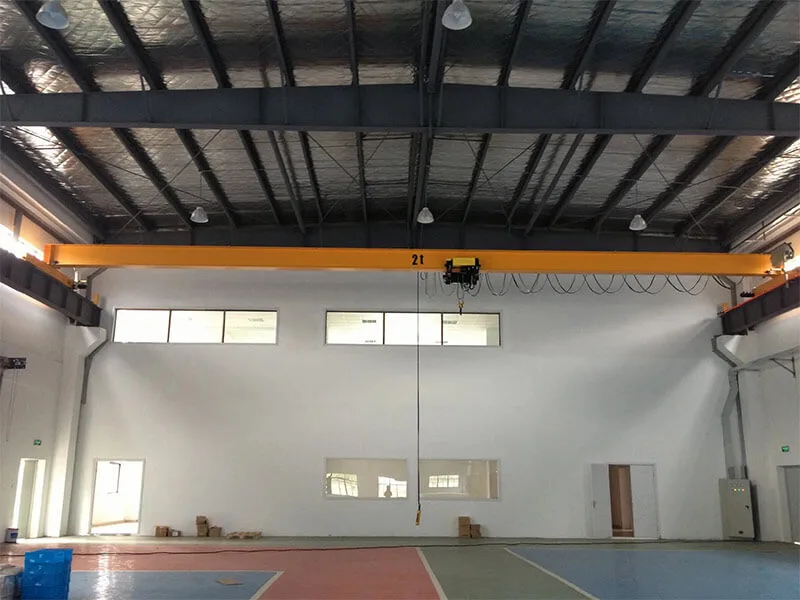

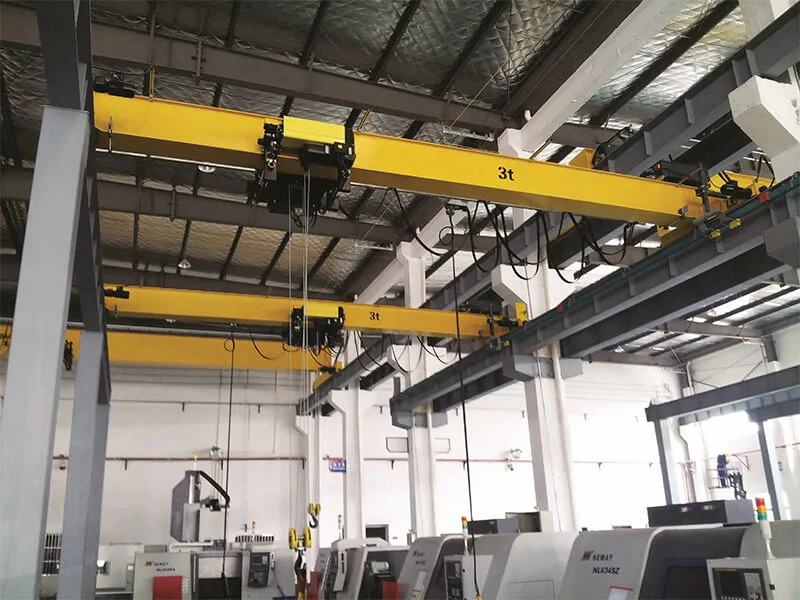

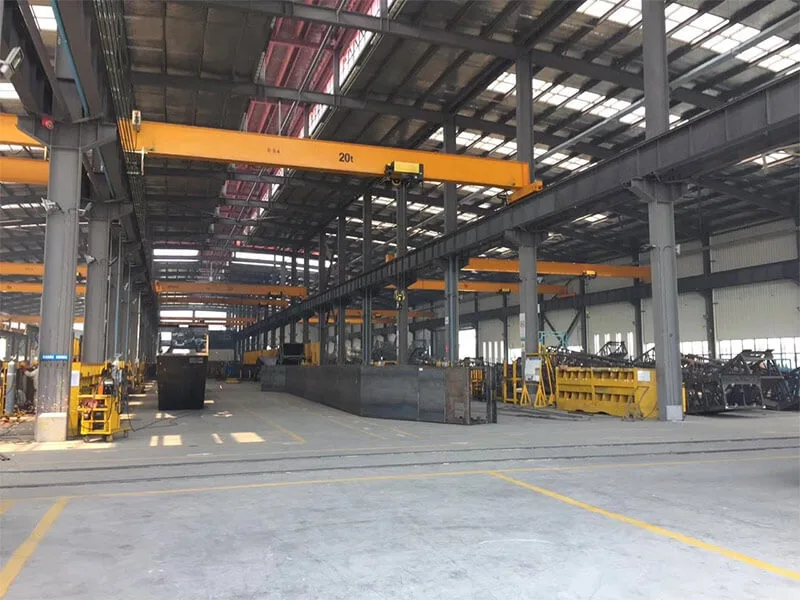

HD European Type Single Girder Overhead Crane

Product Overview

HD European type single girder overhead crane is based on European standards.

The working level is FEM 2m (ISO M5).

Standard capacity from 1 ton to 20 tons.

HD overhead crane is very suitable for light industrial applications.

Such as equipment installation and maintenance in power stations or other workplaces, or workshops and warehouses with infrequent work.

HD European type single girder overhead crane adopts ND European electric hoist.

HD FEM single-beam bridge crane uses a three-in-one reducer (hardened gear reducer, variable frequency brake motor) as the driving mechanism, so the structure is more compact.

This design makes the blind area of the bridge crane smaller, thus covering a larger working area.

In addition, the brake pads of the three-in-one reducer motor are maintenance-free for life, which can save the later maintenance costs.

Depending on your actual use, there are different overhead cranes for customers to choose from.

We have an experienced team of crane engineers.

We design the right bridge crane system for you, and provide a full range of after-sales services to enable your crane to operate quickly, stably and reliably.

Key Advantages

This crane model is engineered for long service life and low maintenance in demanding industrial environments. Buyers choose it because it is built by the factory itself, with steel structure processed by CNC cutting and automated welding for dimensional accuracy and consistent quality.

• Low production costs.
• Easy installation, services, and maintenance.
• Usually the most cost-effective choice for light to medium duty cranes.
• Suitable for buildings with limited headroom.
• Light weight can reduce the cost of supporting structures and minimize the load on existing building structures.

Main Features

Every HD European Type Single Girder Overhead Crane leaves the factory complete with the following standard features, verified during final inspection and load testing:

• Shot-blasting Sa2.5 for complete girder after welding.
• High protection class IP55, F class, 40% ED.
• High quality automatic welding and NDT inspection.
• DIN/FEM standard deflection.
• Excellent driving properties, stepless control, smoothly moving.
• Compacted gear motor driving, stepless control, harden gear, safety disc brake IP55.
• Whole length CNC cutting for complete web plate.
• High tension bolts mounting between girder and legs.
• All hoist and crane movements are independent and can be run simultaneously.

Applications & Working Conditions

The HD European Type Single Girder Overhead Crane is used across industrial plants, warehouses, steel mills, power stations, ports and logistics centers. It is available with optional lifting attachments such as lifting beams, electromagnets, grabs, C-hooks and coil tongs for special material handling.

Standard models operate in ambient temperatures from -20°C to +50°C. For special environments, we can supply explosion-proof electrics, high-temperature paint systems, dust-proof protection or corrosion-resistant coatings. Tell us your working condition and our engineers will confirm the correct configuration.

Customization Options

We customize span, lifting height, working class, control mode (pendant, wireless remote or cabin), and add frequency conversion speed control, explosion-proof protection or special coatings to suit your environment. Tell us your requirements and our engineers will prepare a tailored proposal.

Standard Supply Scope

Your order includes the complete crane structure, travelling mechanism, hoisting trolley or hoist, electrical control system, safety devices (limit switches, overload limiter, buffers, emergency stop), operation manual and inspection certificates. Optional extras include wireless remote control, frequency inverter, cabin with heater/air conditioner, lighting and special lifting attachments.

Quality Control & Testing

All structural welding is performed by certified welders and inspected before painting. Each crane undergoes no-load and full-load testing on our test bench, including brake test, limit switch verification and electrical safety check. Third-party inspection (SGS or buyer-nominated) is available before shipment.

Packing & Shipping

Cranes are shipped in knockdown form with steel structure, wheels, trolley, electrics and hardware carefully packed to prevent damage during ocean freight. Export packing follows our standard seaworthy specification, with wooden cases for electrics and control panels. Delivery options include FOB, CIF and DDP to your port.

Installation & After-Sales

We offer installation supervision and commissioning by our engineers, or fully turnkey installation by our experienced team. After commissioning we provide operator and maintenance training, a complete documentation package, and 24/7 spare parts and technical support for the lifetime of the crane.

What to Include in Your Inquiry

To receive an accurate quotation, please send us the following details with your inquiry: required lifting capacity (ton), span or working radius, lifting height, duty / working class, control method (pendant, radio remote or cabin), power supply voltage, site environment (indoor, outdoor, high temperature, dusty, explosion-proof area), and quantity. The more detail you provide, the faster our engineers can confirm the design and price.

Why Buy This Model from FLAGCRANE

You are buying directly from the factory that designs and manufactures the equipment. That means factory-direct pricing, engineering support before and after the order, consistent quality across repeat purchases, and a single accountable partner from drawing approval to commissioning. Our 30+ years in crane manufacturing, 850,000 m² plant and export experience to 50+ countries give buyers the confidence to plan around our delivery schedule.

Typical Configurations

The table below shows common configuration combinations for this model line. Final specifications are always confirmed by our engineers against your site conditions before production.

Parameter	Standard Range
Lifting Capacity	2t to 16t
Span	7.5m to 28.5m
Lifting Height	6m to 18m
Working Class	A5
Ambient Temperature	-20℃ to 40℃
