LX Single Girder Suspension Crane

Product Overview

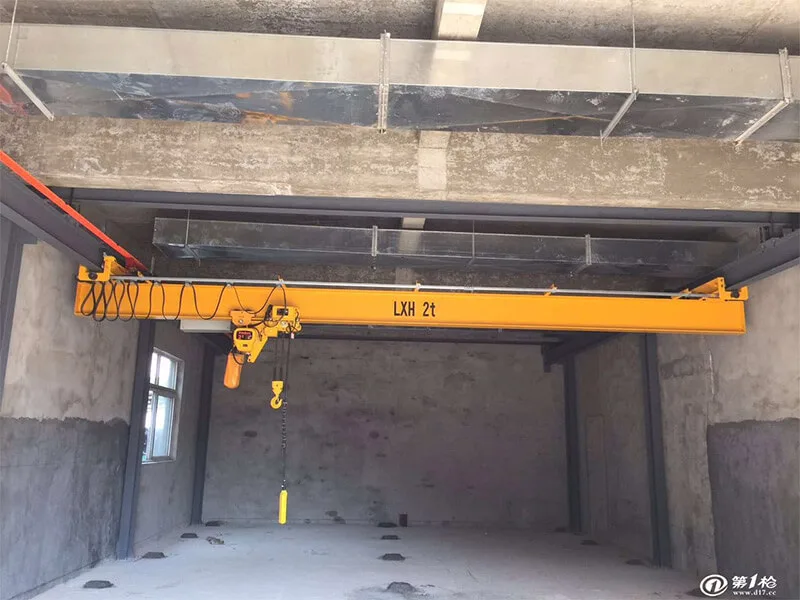

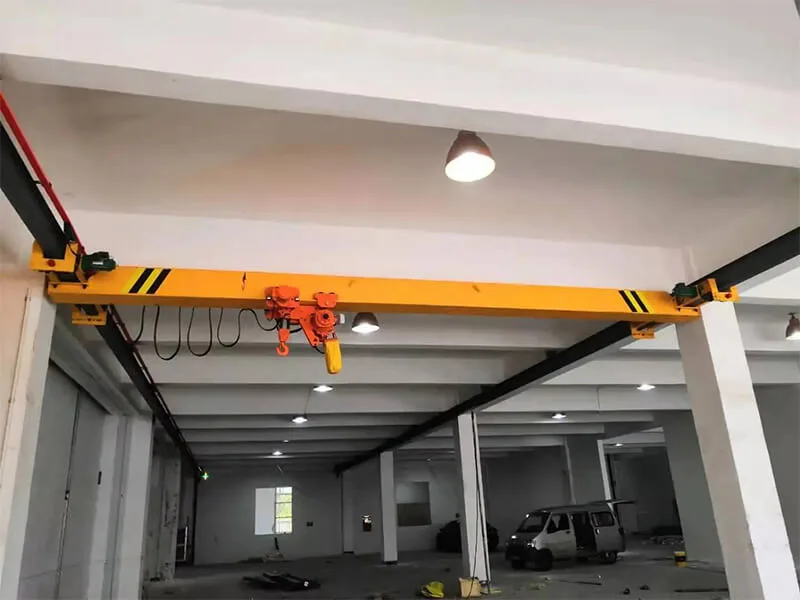

LX Single beam suspension crane is also called under running crane/single girder underslung crane/under running bridge crane.

It is often used in factories without load-bearing columns but with load-bearing roofs.

The commonly used lifting capacity of single-beam suspension cranes is 1 to 10 tons, the span is 3 to 15 meters, and the operating speed is 20m/min and 30m/min.

LX Single beam suspension crane is designed according to international standards.

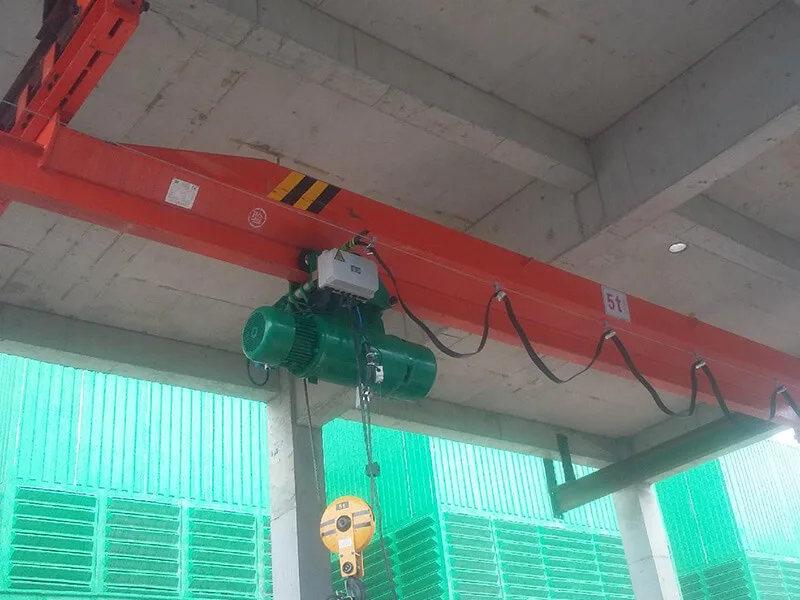

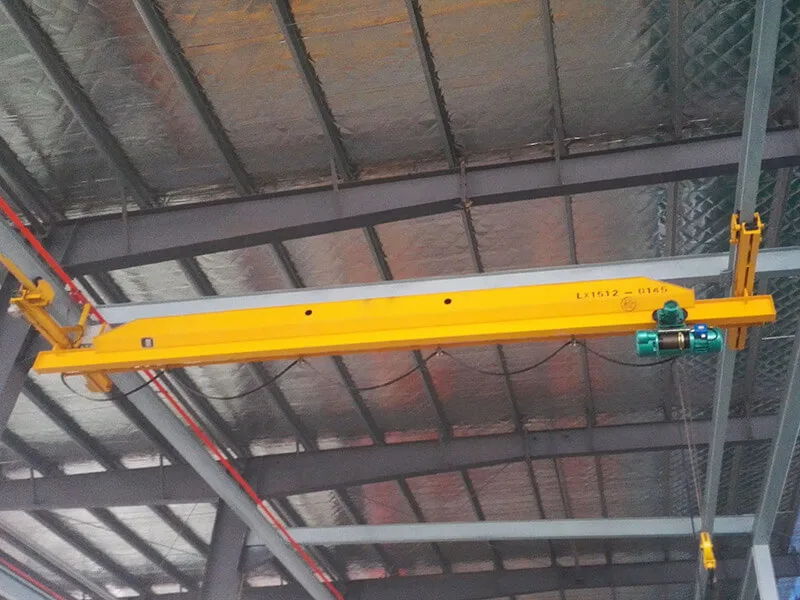

It is a light material handling equipment, single beam running on the suspended track, usually equipped with CD or MD electric hoist.

Depending on your actual use, there are different overhead cranes for customers to choose from.

We have an experienced team of crane engineers.

We design the right bridge crane system for you, and provide a full range of after-sales services to enable your crane to operate quickly, stably and reliably.

Key Advantages

This crane model is engineered for long service life and low maintenance in demanding industrial environments. Buyers choose it because it is built by the factory itself, with steel structure processed by CNC cutting and automated welding for dimensional accuracy and consistent quality.

• Flexible operation, low maintenance cost
• Compact structure, good rigidity
• High safety and reliability
• High quality, high cost performance.
• High space utilization
• Wide application range
• Smooth operation, effective braking and long service life.

Main Features

Every LX Single Girder Suspension Crane leaves the factory complete with the following standard features, verified during final inspection and load testing:

• All hoists and cranes operate independently or simultaneously.
• Ground control mode: pendant control, remote control.
• The mobile power supply of the electric hoist is composed of flat cable or special cable.

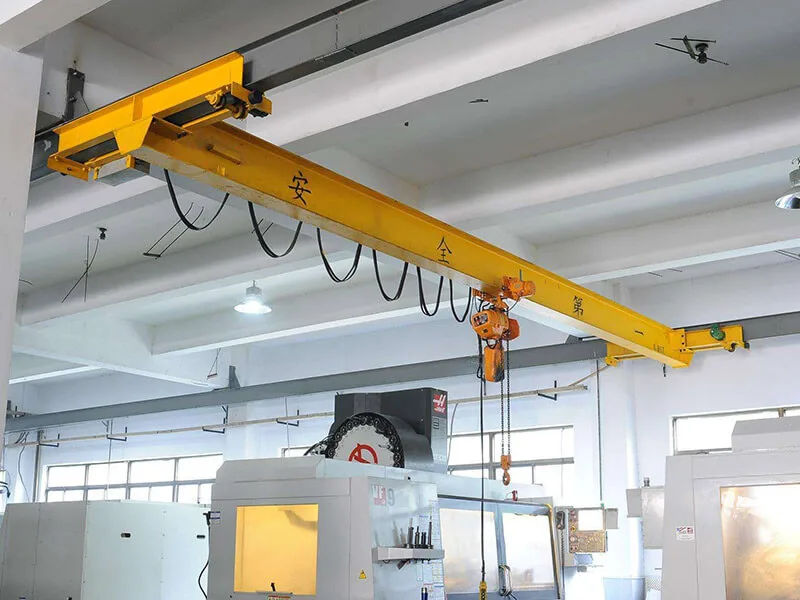

• Electric hoist type: wire rope hoist or chain hoist, which can be selected according to requirements.
• The main beam is composed of I-beam and channel steel, which is used to lift small tonnage loads. The other type is composed of U-shaped steel and I-beam, which is used to lift large tonnage loads.

Applications & Working Conditions

The LX Single Girder Suspension Crane is used across industrial plants, warehouses, steel mills, power stations, ports and logistics centers. It is available with optional lifting attachments such as lifting beams, electromagnets, grabs, C-hooks and coil tongs for special material handling.

Standard models operate in ambient temperatures from -20°C to +50°C. For special environments, we can supply explosion-proof electrics, high-temperature paint systems, dust-proof protection or corrosion-resistant coatings. Tell us your working condition and our engineers will confirm the correct configuration.

Customization Options

We customize span, lifting height, working class, control mode (pendant, wireless remote or cabin), and add frequency conversion speed control, explosion-proof protection or special coatings to suit your environment. Tell us your requirements and our engineers will prepare a tailored proposal.

Standard Supply Scope

Your order includes the complete crane structure, travelling mechanism, hoisting trolley or hoist, electrical control system, safety devices (limit switches, overload limiter, buffers, emergency stop), operation manual and inspection certificates. Optional extras include wireless remote control, frequency inverter, cabin with heater/air conditioner, lighting and special lifting attachments.

Quality Control & Testing

All structural welding is performed by certified welders and inspected before painting. Each crane undergoes no-load and full-load testing on our test bench, including brake test, limit switch verification and electrical safety check. Third-party inspection (SGS or buyer-nominated) is available before shipment.

Packing & Shipping

Cranes are shipped in knockdown form with steel structure, wheels, trolley, electrics and hardware carefully packed to prevent damage during ocean freight. Export packing follows our standard seaworthy specification, with wooden cases for electrics and control panels. Delivery options include FOB, CIF and DDP to your port.

Installation & After-Sales

We offer installation supervision and commissioning by our engineers, or fully turnkey installation by our experienced team. After commissioning we provide operator and maintenance training, a complete documentation package, and 24/7 spare parts and technical support for the lifetime of the crane.

What to Include in Your Inquiry

To receive an accurate quotation, please send us the following details with your inquiry: required lifting capacity (ton), span or working radius, lifting height, duty / working class, control method (pendant, radio remote or cabin), power supply voltage, site environment (indoor, outdoor, high temperature, dusty, explosion-proof area), and quantity. The more detail you provide, the faster our engineers can confirm the design and price.

Why Buy This Model from FLAGCRANE

You are buying directly from the factory that designs and manufactures the equipment. That means factory-direct pricing, engineering support before and after the order, consistent quality across repeat purchases, and a single accountable partner from drawing approval to commissioning. Our 30+ years in crane manufacturing, 850,000 m² plant and export experience to 50+ countries give buyers the confidence to plan around our delivery schedule.

Typical Configurations

The table below shows common configuration combinations for this model line. Final specifications are always confirmed by our engineers against your site conditions before production.

Parameter	Standard Range
Lifting Capacity	0.5t to 10t
Span	3m to 31.5m
Lifting Height	6m to 18m
Working Class	A3 to A5
Ambient Temperature	-20℃ to 50℃
