Special Overhead Cranes for Metallurgical Industry

Product Overview

Flagcrane provides special overhead cranes for metallurgical industry.

Casting workshops, slab handling, heat treatment workshops, etc. that are sensitive to high temperatures or ambient temperature fluctuations require cranes of different types and models to work together, such as the transfer and lifting of ladles, billets, ingots, and coils in ironmaking, steelmaking, and rolling systems.

Flan Crane is in line with the crane design and optimization concept of the process requirements of the metallurgical industry.

While ensuring product quality, it pays more attention to the safety performance and automation of the crane, which can reduce the cost of the material handling system in the metallurgical industry.

Flagcrane's technical team deeply understands the production conditions on site and designs special cranes for each process of the steel plant.

We follow the concept of precise design and optimization, targeting special environments and process requirements, while also ensuring its stable and safe operation.

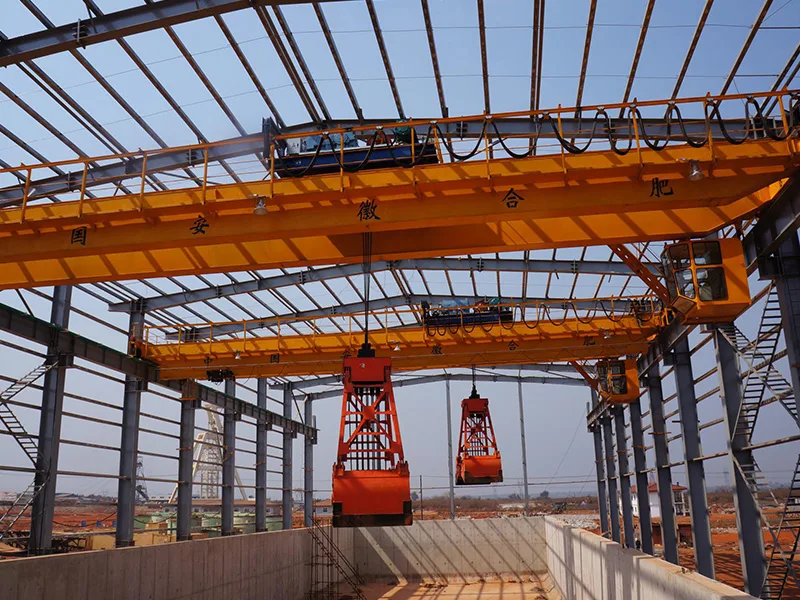

Special overhead crane products provided for the metallurgical industry include: Metallurgical/casting special metallurgical overhead crane High-performance electromagnetic overhead crane for billet transportation Roller transportation overhead crane designed for roll grinding workshop Special environment crane suitable for annealing workshop and pickling workshop Unmanned fully automatic intelligent overhead crane High-efficiency loading overhead crane with special spreaders (Electromagnet, grab bucket, lifting beam, swivel hook, C-hook, lifting tong, ladle hook, coil tong, etc.) Depending on your actual use, there are different overhead cranes for customers to choose from.

We have an experienced team of crane engineers.

We design the right bridge crane system for you, and provide a full range of after-sales services to enable your crane to operate quickly, stably and reliably.

Key Advantages

This crane model is engineered for long service life and low maintenance in demanding industrial environments. Buyers choose it because it is built by the factory itself, with steel structure processed by CNC cutting and automated welding for dimensional accuracy and consistent quality.

• ‌Efficient operation‌: With its strong lifting capacity and fast lifting rate, special metallurgical overhead crane can complete large-scale material processing in a short time, greatly improving production efficiency.
• ‌Safety guarantee‌: Built-in intelligent control system and various safety protection measures can effectively prevent accidents and ensure the safety of operators and equipment.
• ‌Save logistics costs‌: special metallurgical overhead crane can quickly and accurately transport materials to the destination, greatly saving material transportation costs, which is a great competitive advantage for the metallurgical industry.
• ‌Improve product quality‌: By accurately controlling the lifting and placement of materials, various unexpected situations can be avoided, thereby improving production quality.
• ‌Adapt to complex environments‌: special metallurgical overhead crane have good stability and flexibility, and can adapt to diversified metallurgical environments such as high temperature, high humidity, and high dust.
• ‌High reliability‌: Metallurgical cranes usually have high reliability and can operate stably in harsh working environments.
• ‌Intelligent control‌: Built-in intelligent control system, which can achieve precise operation through machine vision technology and improve operational efficiency‌.
• ‌Strong adaptability‌: It can adapt to different types of metal smelting needs, including the processing of various metals such as steel, aluminum, copper, etc.

Main Features

Every Special Overhead Cranes for Metallurgical Industry leaves the factory complete with the following standard features, verified during final inspection and load testing:

• Working characteristics: Metallurgical cranes participate in specific process flows, have high working levels, high utilization levels, frequent starting and braking, and can be powered up 150 to 300 times per hour. The load state is heavy, especially in the stripping, clamp-type, and open-hearth charging bridge cranes. The lifting load is small compared to the mass of the trolley, and the load acting on the bridge is close to the rated load value. In addition, the working environment of metallurgical cranes is harsh, and high temperature, high dust, and high noise are its significant characteristics.
• Design features: The design of metallurgical cranes focuses on high temperature resistance and high-intensity work resistance. Its hooks, such as forging hooks and plate hooks, have a large carrying capacity for high-temperature radiation, can work at an ambient temperature of -10℃ to +50℃, and the radiation temperature of the molten metal to the hook does not exceed 300℃. In addition, metallurgical cranes have more safety protection devices and a higher working level, which are suitable for special purposes such as steel mills.
• ‌Technical features‌: The motor of the metallurgical crane has a high insulation level, usually F or even H class insulation, to withstand the high current impact under frequent start-stop and forward and reverse working conditions. Its stator and base, rotor and shaft are fixed with long keys to ensure stable mechanical properties under high-intensity working environment. The cooling fan adopts a metal fan to withstand high temperature, and the shaft extension adopts a conical design.

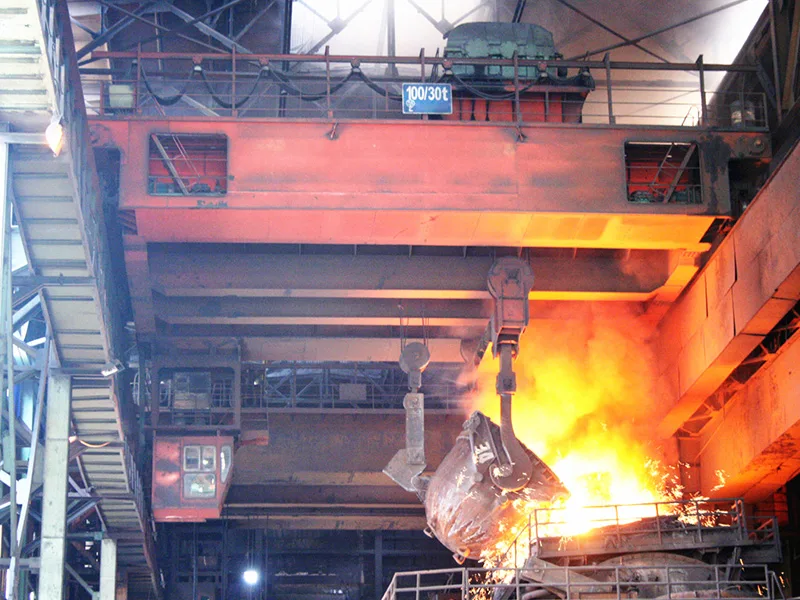

• ‌Application features‌: Metallurgical cranes are mainly used in metal smelting workshops to lift molten metal. Specific applications include charging the converter, adding molten iron from the span to the converter, lifting molten steel to the refining furnace, or lifting molten steel to the continuous casting ladle turntable in the molten steel receiving span, etc.

Applications & Working Conditions

The Special Overhead Cranes for Metallurgical Industry is used across industrial plants, warehouses, steel mills, power stations, ports and logistics centers. It is available with optional lifting attachments such as lifting beams, electromagnets, grabs, C-hooks and coil tongs for special material handling.

Standard models operate in ambient temperatures from -20°C to +50°C. For special environments, we can supply explosion-proof electrics, high-temperature paint systems, dust-proof protection or corrosion-resistant coatings. Tell us your working condition and our engineers will confirm the correct configuration.

Customization Options

We customize span, lifting height, working class, control mode (pendant, wireless remote or cabin), and add frequency conversion speed control, explosion-proof protection or special coatings to suit your environment. Tell us your requirements and our engineers will prepare a tailored proposal.

Standard Supply Scope

Your order includes the complete crane structure, travelling mechanism, hoisting trolley or hoist, electrical control system, safety devices (limit switches, overload limiter, buffers, emergency stop), operation manual and inspection certificates. Optional extras include wireless remote control, frequency inverter, cabin with heater/air conditioner, lighting and special lifting attachments.

Quality Control & Testing

All structural welding is performed by certified welders and inspected before painting. Each crane undergoes no-load and full-load testing on our test bench, including brake test, limit switch verification and electrical safety check. Third-party inspection (SGS or buyer-nominated) is available before shipment.

Packing & Shipping

Cranes are shipped in knockdown form with steel structure, wheels, trolley, electrics and hardware carefully packed to prevent damage during ocean freight. Export packing follows our standard seaworthy specification, with wooden cases for electrics and control panels. Delivery options include FOB, CIF and DDP to your port.

Installation & After-Sales

We offer installation supervision and commissioning by our engineers, or fully turnkey installation by our experienced team. After commissioning we provide operator and maintenance training, a complete documentation package, and 24/7 spare parts and technical support for the lifetime of the crane.

What to Include in Your Inquiry

To receive an accurate quotation, please send us the following details with your inquiry: required lifting capacity (ton), span or working radius, lifting height, duty / working class, control method (pendant, radio remote or cabin), power supply voltage, site environment (indoor, outdoor, high temperature, dusty, explosion-proof area), and quantity. The more detail you provide, the faster our engineers can confirm the design and price.

Why Buy This Model from FLAGCRANE

You are buying directly from the factory that designs and manufactures the equipment. That means factory-direct pricing, engineering support before and after the order, consistent quality across repeat purchases, and a single accountable partner from drawing approval to commissioning. Our 30+ years in crane manufacturing, 850,000 m² plant and export experience to 50+ countries give buyers the confidence to plan around our delivery schedule.

Typical Configurations

The table below shows common configuration combinations for this model line. Final specifications are always confirmed by our engineers against your site conditions before production.

Parameter	Standard Range
Lifting Capacity	5t to 320t
Span	7.5m to 35m
Lifting Height	&nbsp6m to 30m
Working Class	A5, A6, A7, A8
Ambient Temperature	-20℃ to 50℃
